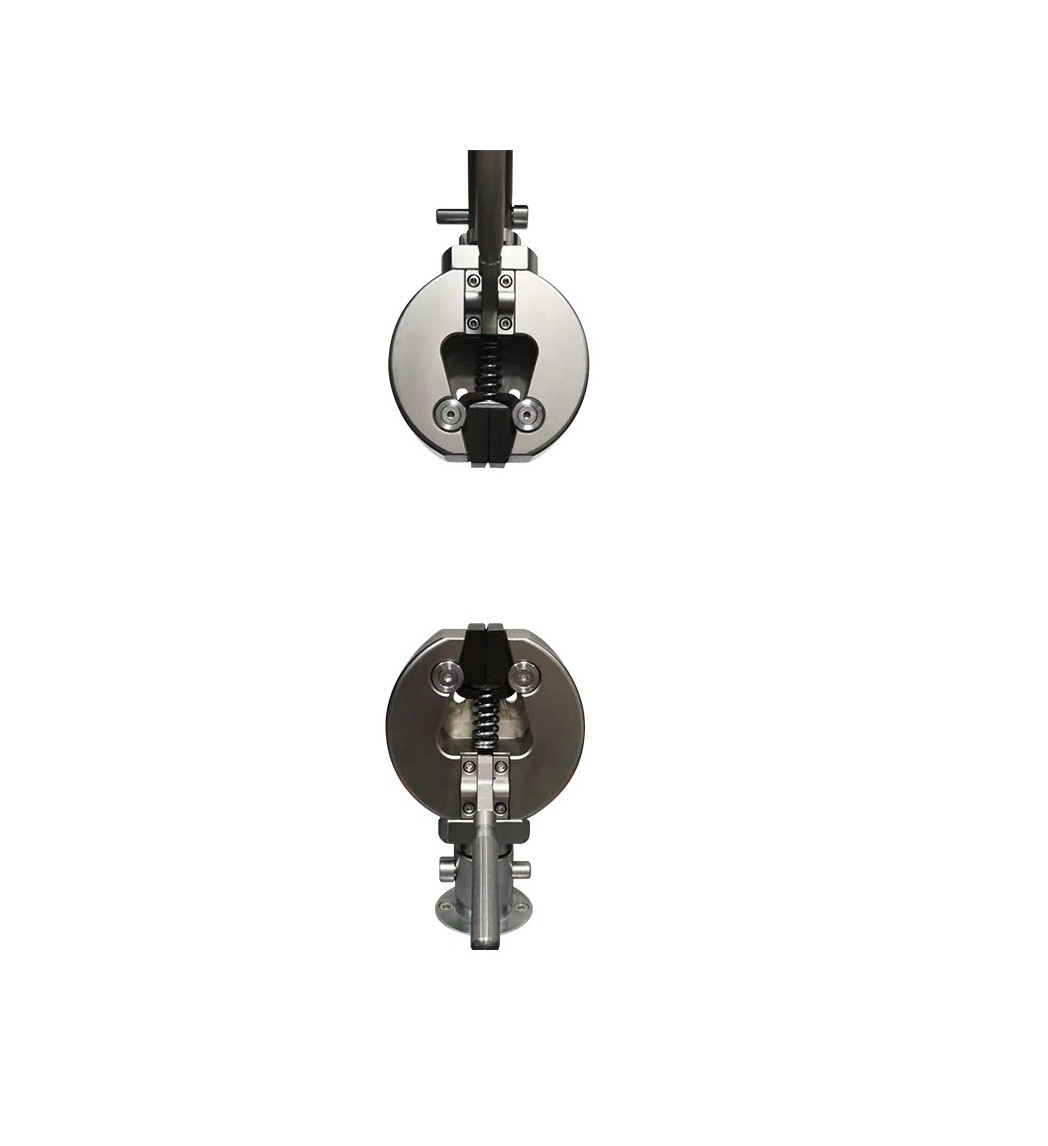

Wedge grips clamp fixture for 20KN tensile strength testing machine

20KN

Product description: Wedge grips clamp fixture for 20KN tensile strength testing machine

Product Details

Optional A or B type connectors:

A joint shaft outer diameter 20MM length 30MM (with lock)

Tight nut

B joint inner hole 20MM deep 30MM;

Pin hole diameter 10MM, from the center of the pin hole to the connector

The end face distance is 14.5mm.

The locking method is single handle spring locking.

Single choice:

jaw: flat 0-9MM

Clamping sample width=30MM
