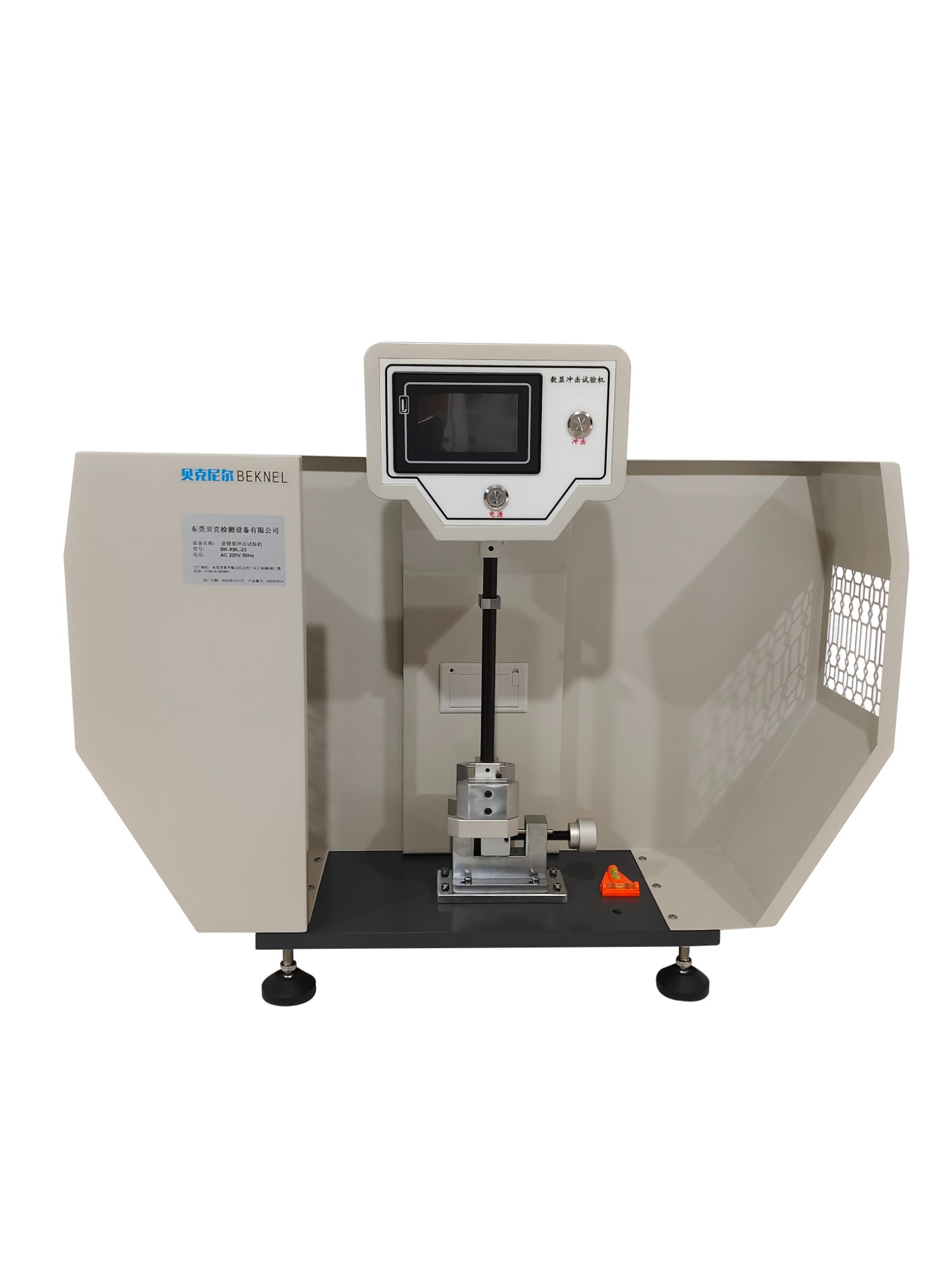

ASTM D256 plastic Izod Impact Tester

ISO180—2000, GB/T1843—2008 ,JB/T8761—1998, ASTM D256-2010

Product description: ASTM D256 plastic Izod Impact is mainly used for the determination of impact toughness of non-metallic materials such as hard plastics, reinforced nylon, glass steel, ceramics, cast stone, electrical

Product Details

Product Tags

Izod Impact Tester is used to test the impact toughness of non-metal materials including plastic, reinforced nylon, glass steel, ceramics, plastics appliance, cast stone, electrical insulating materials, etc.Pendulum impact testing machine is a common device in scientific research units, universities, non metal materials manufacturers to carry out quality inspection. This machine is a kind of simple structure, convenient operation, high precision testing instrument. Digital impact test machine adopts high precision encoder technology, with high precision, good stability and wide measurement range etc. Digital measurements shoe the impact strength and the average energy loss, automatic correction, print test reports and other functions.

Standards:

ISO180—2000

GB/T1843—2008

JB/T8761—1998

ASTM D256-2010

Technical parameters:

Power supply: AC220 ± 10% 50HZ

Impact speed: 3.5m/s

Impact energy: 2.75J, 5.5J

Impact pendulum torque: Pd2.75=1.474N · M Pd5.5=2.948N · M

Accuracy: Angle (0.01 °) Energy (0.01J)

Pendulum pre lift angle: 150 ° ± 1 °
