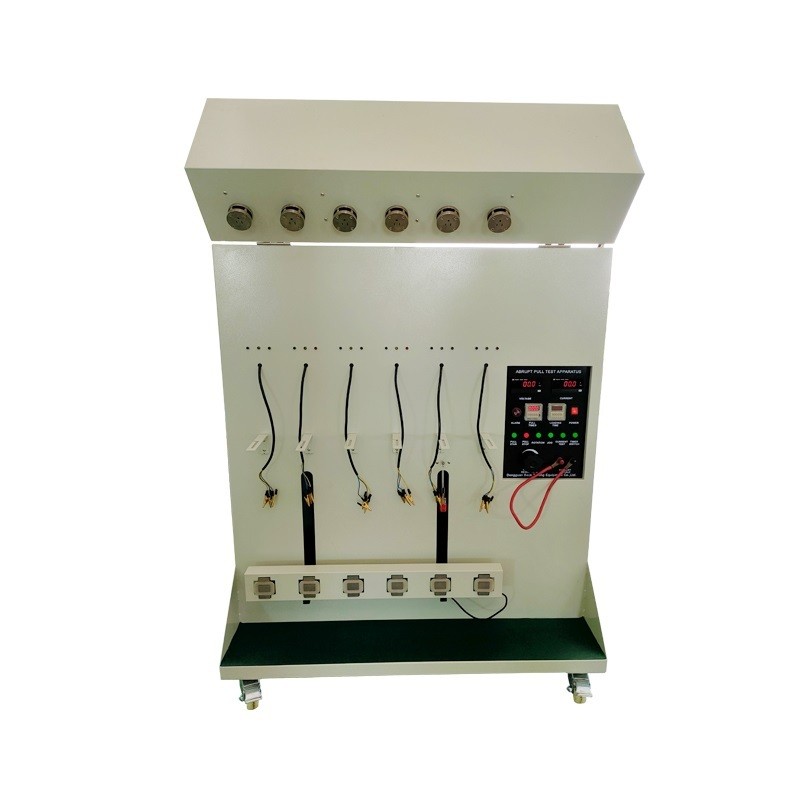

UL817 Flexible Cord Abrupt Pull Test Apparatus

Flexible Cord Abrupt Pull Test Apparatus

Product description: UL817 Flexible Cord Abrupt Pull Test Apparatus conform to UL 817 clause 99 and figure 99.1 -99.2, is applied to molded-on attachment plugs and the male portion of molded-on current taps used on cord s

Product Details

Product Tags

Product Description

Flexible Cord Abrupt Pull Test Apparatus
conform to UL 817 clause 99 and figure 99.1 -99.2, is applied to molded-on attachment plugs and the male portion of molded-on current taps used on cord setsand power-supply cords employing a grounding conductor , for abrupt pull test, rotation test,drop weight test and carrying current test of grouding conductor :0.1-40A

1、 Overview:

The CORD ABRUPT PULL TSET APPARATUS machine is used to test the bonding strength between the plug edge and the wire and the anti burst pull strength of the cord.

Connect the lead to the socket with the impact hammer and fix the lead with the impact hammer. After that, hoist the weight and carry out the rotation test and

e-pole (grounding electrode) current withstand test.

2、 Scope of application:

It is applicable to the sudden tensile strength test, torsion test, load test and grounding wire current test between the plug of the power plug line and the conductor.

The sudden tensile test adopts the automatic action impact test to ensure the accuracy of the test results.

3、 Main parameters:

1. Test sample: 6 pieces

2. Counter: 0 ~ 999999 times adjustable

3. Sudden pull weight: 2.5lb × six

4. Rotating weight: 3lb × six

5. Load weight: 15lb × six

6. Slewing speed: 4R / min

7. Load current: 40A / 12V

8. Sudden pulling height: two core 7inch or 178mm / three core 10INCH or 254MM
