Application：

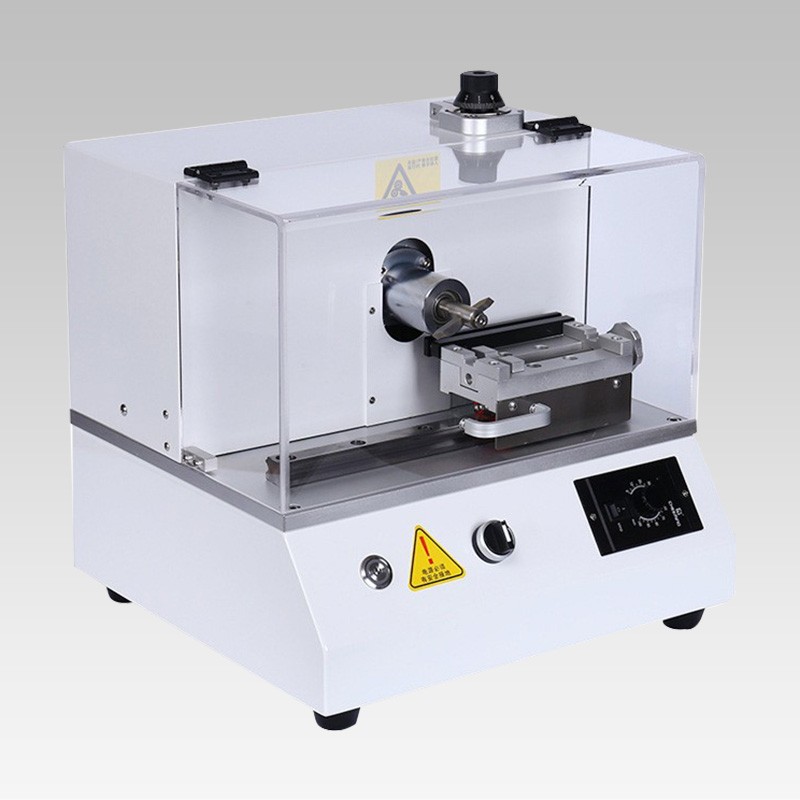

The electric notch sample making machine is used for the sample preparation equipment of notched samples used in the impact toughness test of non-metallic materials by cantilever beam and Charpy impact testing machine. It can clamp 20 samples at a time, and process more than 100 notches every 10 minutes. The size of the gap is accurate, the efficiency is high, and the operation intensity is greatly reduced.

Technical Parameters:

Table stroke: >90mm

Feeding speed: 30mm/min

Sampling efficiency: more than 100 pieces/10min

Feed rate: 0-2.5mm optional

Feed stroke: 10mm

The type of notch made: customized according to the tool specification

Dimensions: length 450mm × width 390mm × height 360mm

Power supply voltage: 220V
