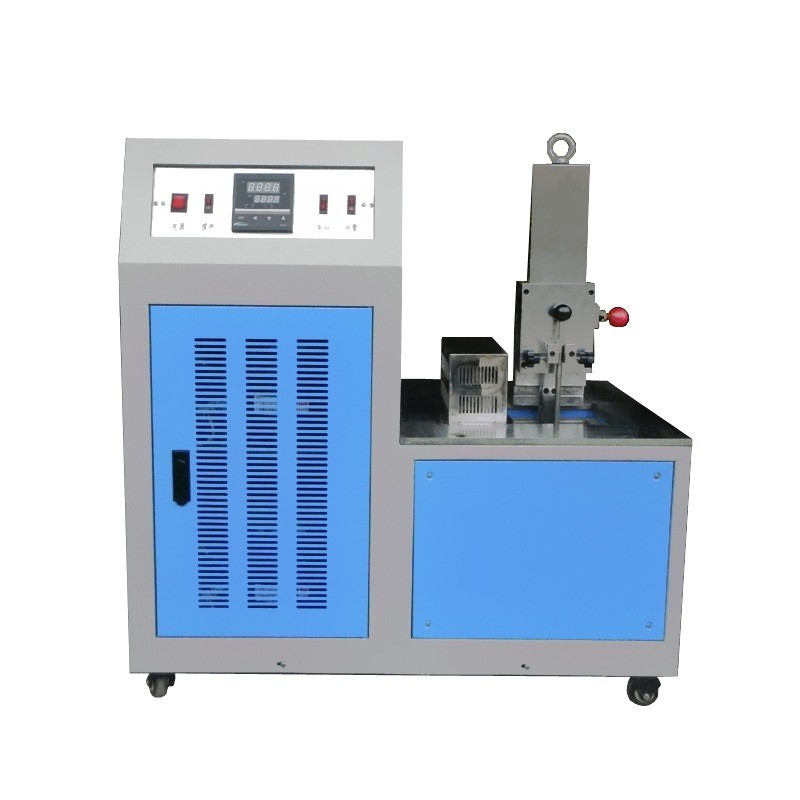

ASTM D476 Rubber Plastic Low Temperature Brittleness Test Machine

Used to test the highest temperature called brittleness temperature when the specimen is broken by impact in prescribed conditions. Applied for non-rigid plastic and other flexible materials at low temperatures and also test the brittleness temperature and low temperature performance for different rubber material or different formula vulcanized rubber.

Standard:

ASTM D476,GB1682-82, ISO812:1991, ISO974—80.

Technical parameters:

Testing temperature	-80℃~0℃
Impact speed	2 m/s±0.2 m/s
Impactor weight	200 ± 20g
Working stroke	40 ± 1mm
Temperature fluctuation	<±0.5℃
Distance between impactor and clamp	11±0.5 (mm)
Distance between impactor and sample	25±1mm
Volume of colder	3L
Sample size	Length: 25.0±0.5mm, width: 6.0±0.5mm, thickness: 2.0±0.3mm
Power	1100W
Dimension	720×700×1350mm
Weight	150kg
