Ultrasonic Copper Aluminum Metal Wire Harness Terminal Welding Machine for Battery Solar Soldering

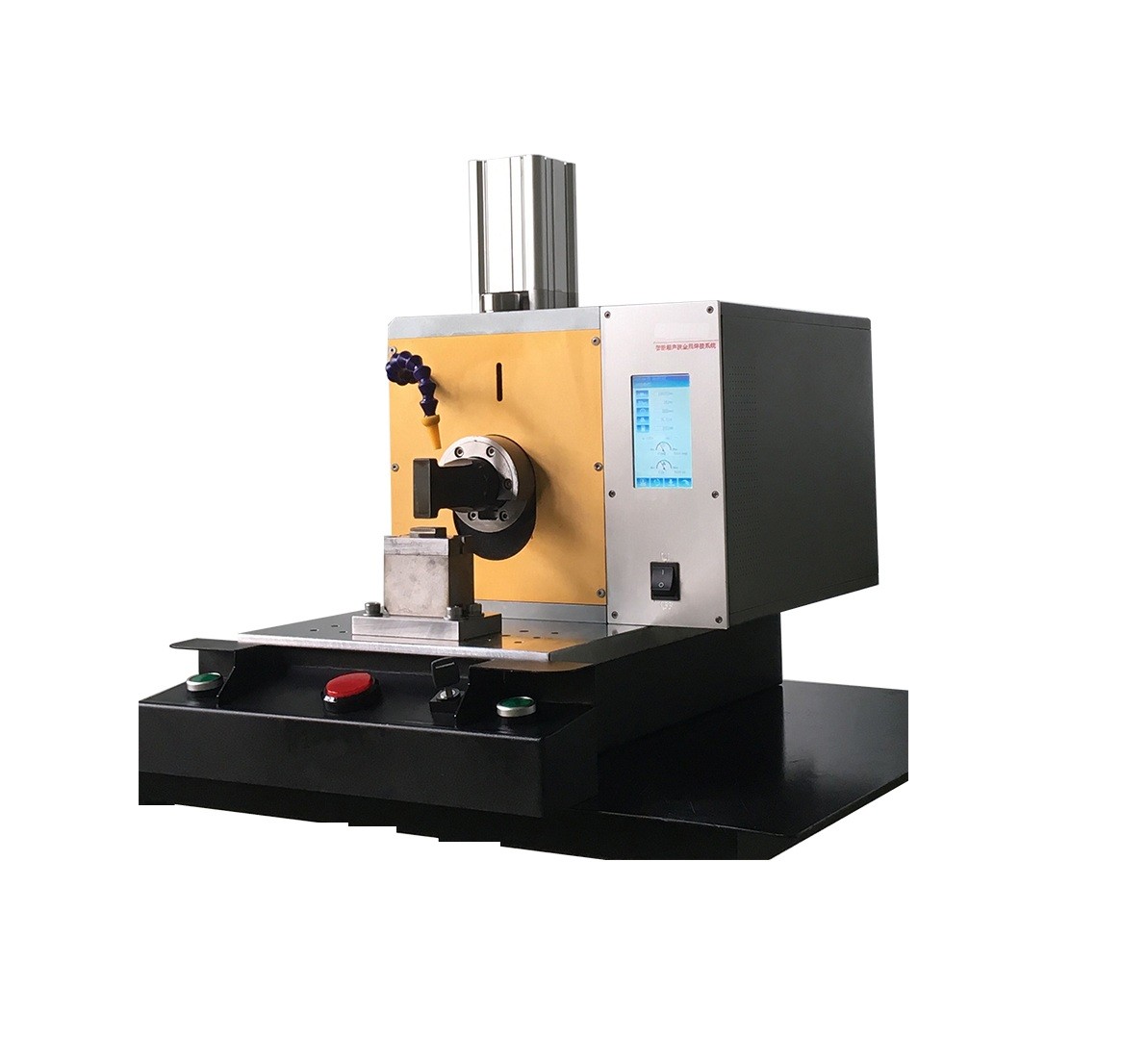

Ultrasonic metal spot welding machine

Product description: Copper welding: wire and wire splicing, wire and terminal welding, wire and copper sheet welding, copper sheet and copper sheet welding, wire and lamp welding, Aluminum welding. etc.

Product Details

Product Tags

Product Description

Ultrasonic metal spot welding machine
2000W-6000W ultrasonic welding machine is available.
Specification

Output power	2000W
Frequency	20KHZ
Frequency range	±0.5KHZ
Input voltage	AC220V
Control method	MCU
Air pressure	0.5-0.7Mpa
Welding thickness	0.1-4mm
Welding time	0.1-9.9s
Amplitude adjustment	1-100% adjustable
Vibrating head cooling	air cooling
Dimensions	700600300mm, 400280220mm
Weight	60KG

Feature

Automatic tracking of energy, time, welding time, energy, air pressure, width, amplitude can be adjusted. By ultrasonic vibration for wire harness splicing or metal plate welding

1. High stability:All-digital integrated circuit, using high-performance anti-jamming processor imported from the United States, while reducing the number of components and simplifying.

2. Frequency automatic tracking: digital frequency synthesis technology combined with composite control technology of digital phase-locked loop frequency tracking can eliminate temperature, Factors such as static load, processing area, tool wear, etc. drift.

3. Powerful output: The use of IGBT power module and the structure of the other-excited oscillating circuit make the output power the traditional self-excited circuit 1.5 times or more.

4. Amplitude stepless adjustment: The amplitude can be increased or decreased instantaneously during the adjustment process, amplitude setting range10%~100%.

5. Intelligent protection and fault alarm prompt: mold current is too high protection, frequency offset protection, total output protection is too large. Equipment failure.If failure occurs, the generator will immediately stop working and prompt the cause of the failure until the technician removes the failure.

6.The amplitude adjustment achieved by the intelligent closed loop amplitude control technology is not affected by the fluctuation of the input power supply voltage and load.Constant amplitude output.

7.A variety of welding modes are switched, so that the welding accuracy is higher, the application range is wider, and the welding effect is better.
