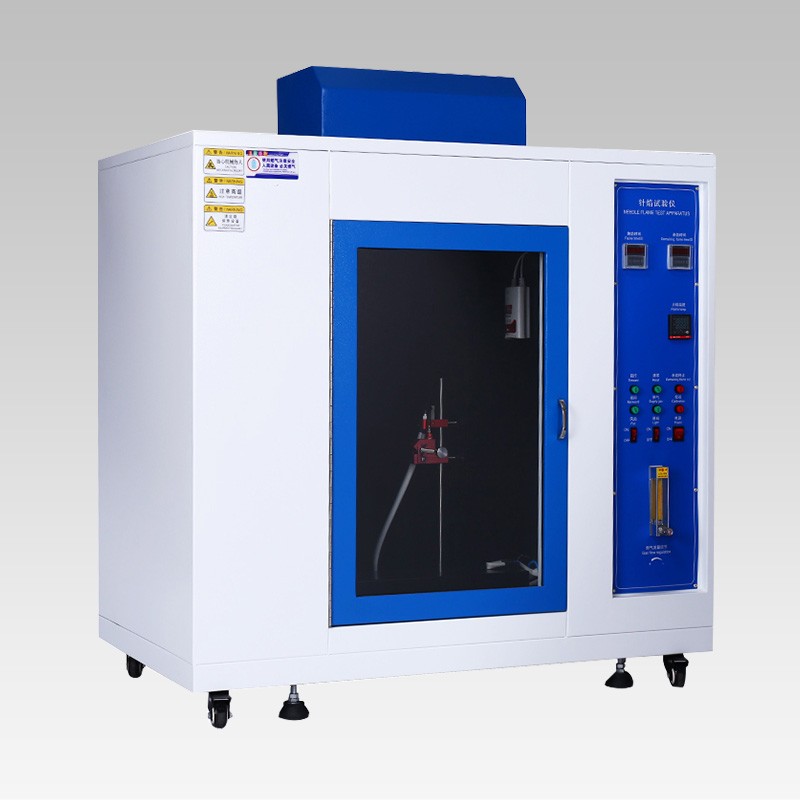

Needle Flame Tester is Designed According to IEC 60695-2-2

According to IEC60695-2-2, IEC60695-11-5 and GB/T-5169.5

Product description: According to IEC60695,Needle Flame Tester is applied in the production and quality control department of lighting instrument, hypopiesis electrical apparatus, domestic appliance, machine electric appl

Product Details

Product Tags

Specifications:
• Angle of burner: incline with 45° (when in test) / plumb (when adjust the flame’s height)
• Needle flame burning time: 0~999.9s±0.1s adjustable (30s in general)
• Sample burning time: 0~999.9s±0.1s, auto mark and pause manually
• Height of flame: 12mm±1mm (gauge is included)
• Burning air: 95% butagas
• Test range of temperature: 0~1000℃
• Requirement of flame’s temperature: the temperature rises from 100℃±2℃ to 700℃±3℃ within 23.5 seconds±1s
• Temperature testing thermocouple: Φ0.5mm K pattern thermocouple
• Applied with touch screen and remote control
