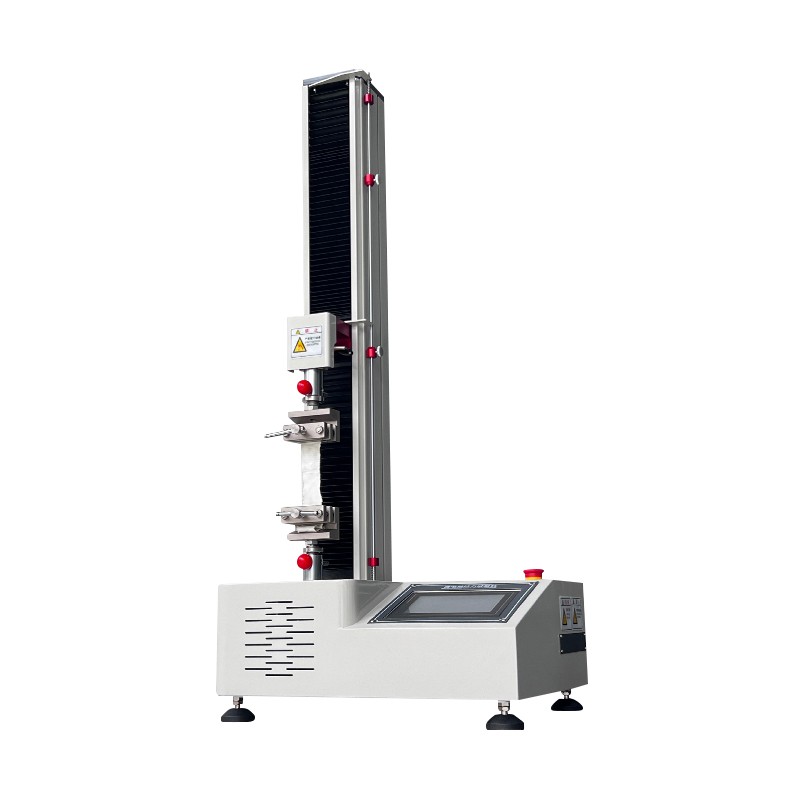

product description：

This machine is suitable for rubber, tire, hose, tape, sole, plastic, film, acrylic, FRP, ABS, EVA, PU, aluminum-plastic pipe, composite material, waterproof material, fiber, textile, wire and cable, electronic components , paper, gold foil, tape, silk thread, spring, wood, pharmaceutical packaging materials, tape, etc. to test and analyze mechanical properties such as tension, compression, tearing, peeling (90 degrees and 180 degrees are acceptable).

Features:

1. Driven by a stepping motor, the transmission mechanism drives the beam to move up and down to realize the test loading process

2. Possess complete safety protection functions such as limit protection, overload protection, emergency stop, etc.

3. The transmission part adopts arc synchronous toothed belt, precision ball screw pair transmission, stable transmission, low noise and high transmission efficiency

4. Touch key operation mode, real-time display on the touch screen display, overcomes the problem that the old-fashioned digital tube display is prone to failure

5. And beautiful, convenient and quick

Technical Parameters:

Model BK-8011

Capacity options 10, 20, 50, 100, 200, 500kg (double capacity configuration is optional)

Force measurement range 2%~100%FS

Unit selection: kg/N/LB; Mpa, etc.

Test force accuracy is better than ±1% of the indicated value

Load resolution 1/250,000

Displacement measurement with a resolution of 0.01mm

Cross beam moving speed 5~500mm/min

Maximum stretching space 600mm

Effective test width Unlimited

Test results Maximum value, tensile strength, elongation

Motor AC stepping motor

Print Micro-printer Print test results and graphics

Machine power supply Single phase, 220V±10%, 50Hz

Host size 550x450x1400mm

Working environment room temperature - 35 ℃, relative humidity not more than 80%
