Product Description:

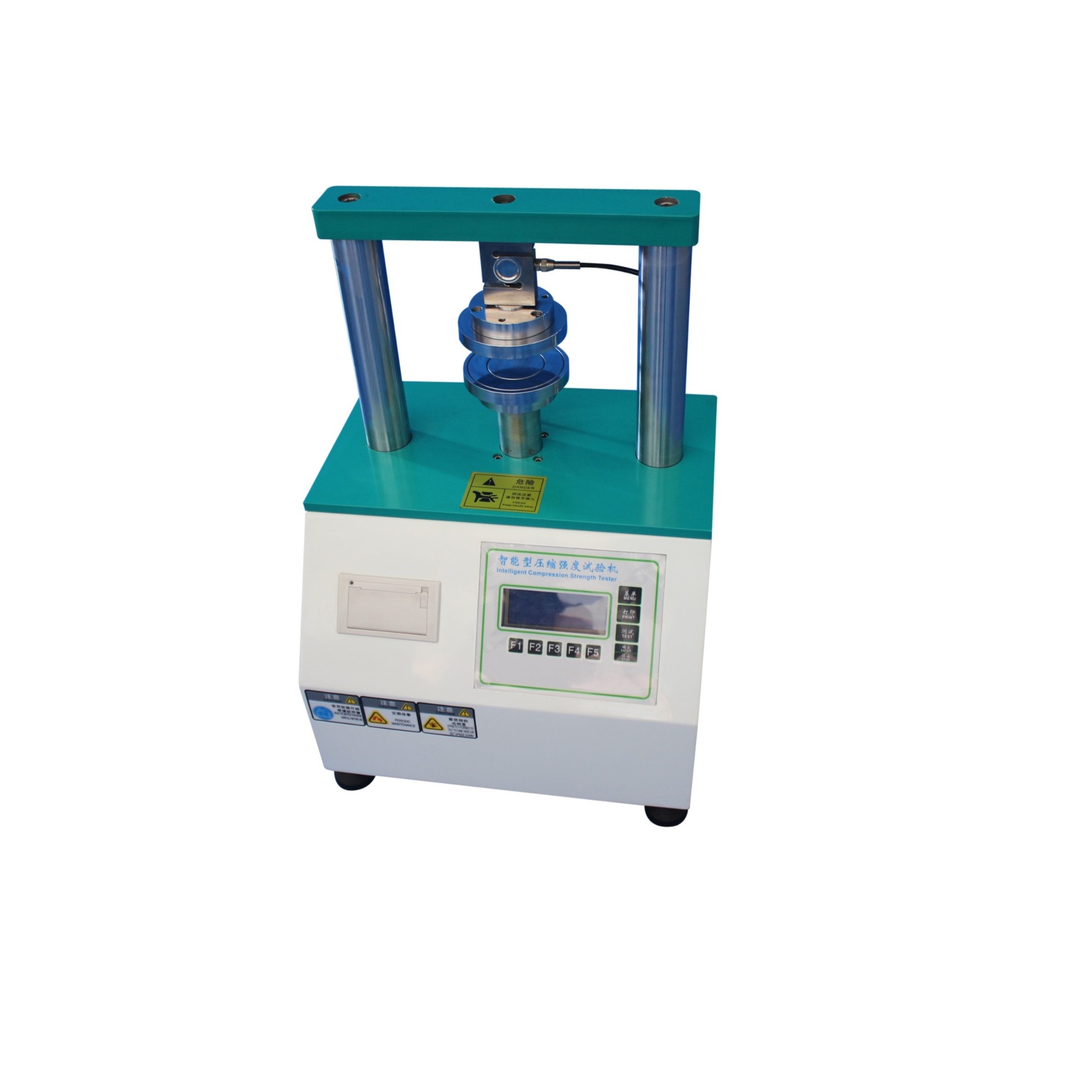

The compressive strength tester is a new type of high-precision intelligent tester independently developed by our company according to the relevant national standards. It is used to detect the paper and cardboard compressive strength tester. , corrugated board bonding strength PAT, corrugated board flat compressive strength FCT, corrugated base paper CMT and corrugated base paper CCT, etc. 6 testing items.

Standards:
GB/T 2679.8, GB/T 6548, GB/T 6546, GB/T 2679.6, ISO12192
Specification:
Measuring range: 5~3000N
Accuracy: ≤±0.5%
Test force test range: 0.4% ~ 100% FS
Displacement speed: 100 r/min
Power accuracy: within ±1%
Force value resolution: 0.1N
Test speed benefit ratio: 1:5
Reduction ratio: 1:40
Deformation resolution: ≤0.1mm
Test speed: 12.5±1mm/min
Platen parallelism: ≤0.05mm
Operating system: Adopt American AD converter to improve detection linearity
Human-machine interface: touch screen control, switch between Chinese and English
Printout: Modular all-in-one thermal printer
Dimensions: 40*37*56cm
Weight: 60kg
