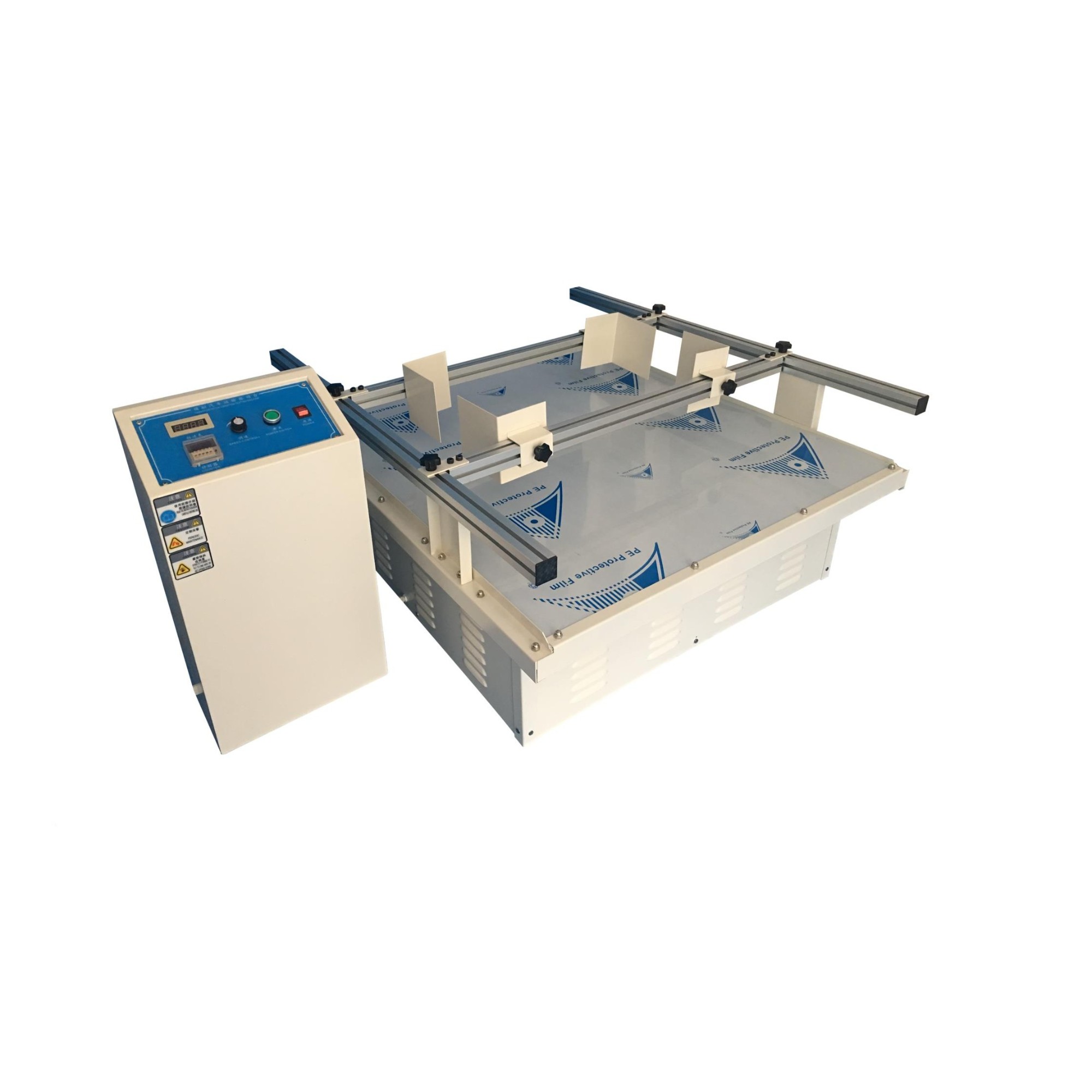

Transportation Vibration Test Machine

 ISTA/EN71 transportation standard

Product description: Simulation transportation vibration is used for simulating the destruction of the vibration of all kinds of package

Product Details

Characteristics:
1. simulation transportation vibration Smooth operation, low noise. Suitable for office and the laboratory installation.

2. simulation transportation vibration The unique slippery course structure design, make sample clamping conveniently and reliable.

3. simulation transportation vibration Timer fuction is elegent appearance.

Specifications:

Speed	100-300RPM
Speed display precision	0.1RPM
Vibration mode	reciprocating
Vibration amplitude	1 inch(25.4mm) +15%, to agree with ISTA/EN71 transportation standard
Max load	100 kg
Effective test area	100×90cm can be customized
Speed accuracy	no more than ±3RPM
Time setting range	0~99.99hour
Motor power	1HP
Max current	5A
Power	220V 50Hz single phase
Dimention	110×100×70cm
