Application

BK -6806 is a semi-automatic programmable coaxial cable stripping machine, unique 4 blade design makes the machine can be thin, hard peeling processing on the insulation material, its processing ability makes the BK - 6806 is suitable for a wide range of wire and cable, even if is very thin and very difficult or slightly less round compound processing is no problem, its largest outside diameter is 7mm, the largest stripping length is 48mm,

This machine is a semi-automatic programmable multi-layer coaxial stripping machine for: coaxial cable, three-axis cable, shielded cable. The machine can handle 0.1-10mm cable, for example: rf1.13; rf1.78; rf3.16; rg58; rg59; rg1.41 .rg 316.rg 402 .rg403 .rg213 .rg213u and so on. The procedures of the machine can be stored in a flexible way to facilitate the processing of different diameter cable. Stable tooling technology can quickly process wire, blade with Swiss tungsten steel material, to ensure the life of the blade and accuracy..

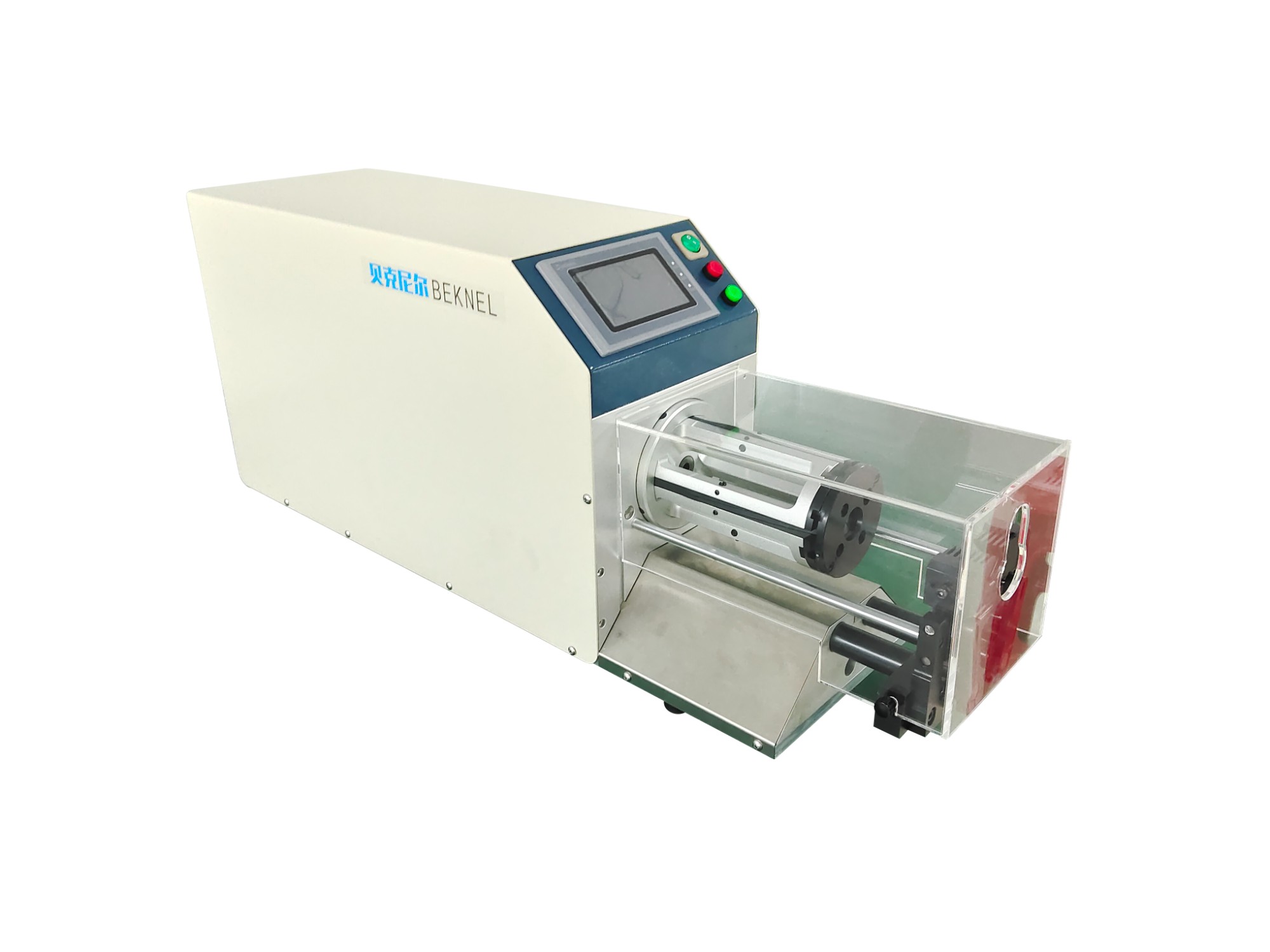

Automatic Coaxial Cable Wire Stripping Machine
