Technical parameters:

1. Power supply voltage: 220V AC 50Hz

2. Power consumption:>5KW

3. Heat output: 0-120KW/m2

4. Sample box placement: 100mm * 100mm * 50mm

5. Exhaust flow rate: 0.012m3/s~0.035m3/s (adjustable)

6. Timing value resolution: 1s error less than 1s/n

7. Oxygen analysis: paramagnetic oxygen analyzer, concentration range 0-25%

8. Smoke density analysis: measurement range: 0.0001-100%, measurement accuracy: ± 3%

9. Infrared CO and CO2 analyzer: CO: 0-1% CO2: 0-10% (optional)

10. Weighing platform: measuring range 100KG,

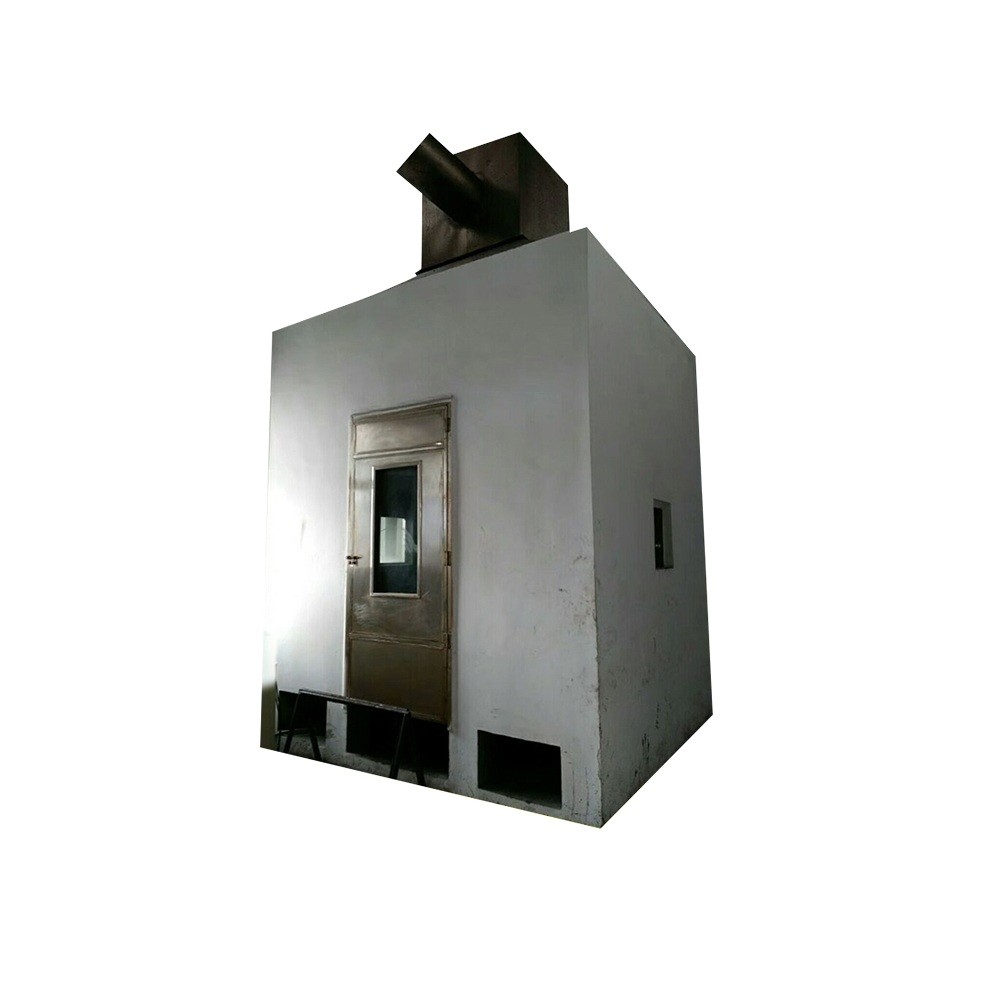

11. The conical flue gas collector is installed directly above the weighing platform and sample, with a bottom size of 3000mm * 3000mm and a height of 1000mm;

The top of the conical flue gas collector has a tilt angle of 40 degrees, the box is a cube, and each surface has an area of 900mm2,

which means the internal size is 900mm with a side length of 900mm × 900mm, with a height of 900mm.

main features:

1. The experimental result data includes the following:

A. Ignition time

B. Average heat release rate within 180s and 300s after ignition

C. Total heat release (mj/m2)

D. Initial margin and residual mass of the sample (Kg)

E. Average storage combustion value (mj/kg)

F. Average mass loss from ignition to the end of the test (kg/s)

G. Radiation velocity (KW/M3) and exhaust volume (m3/s)

H. Heat release rate time curve

I. Smoke release rate (optional)

J. Generation rate of toxic gases (carbon monoxide, carbon dioxide) (optional)

2. High voltage spark generator: automatic positioning ignition

3. Modular combination of devices: Users can choose standard configurations based on actual applications
