Oxygen bomb air bomb aging testing machine Aging Test Chamber

IEC 60335-1 Oxygen Bomb (Air Bomb) Aging Test Chamber

Product description: It is suitable for the aging test in the oxygen and compressed air to the wire and cable, rubber (plastic, leather) insulation and sheathing, as well as other polymer materials under the action of a p

Product Details

Product Tags

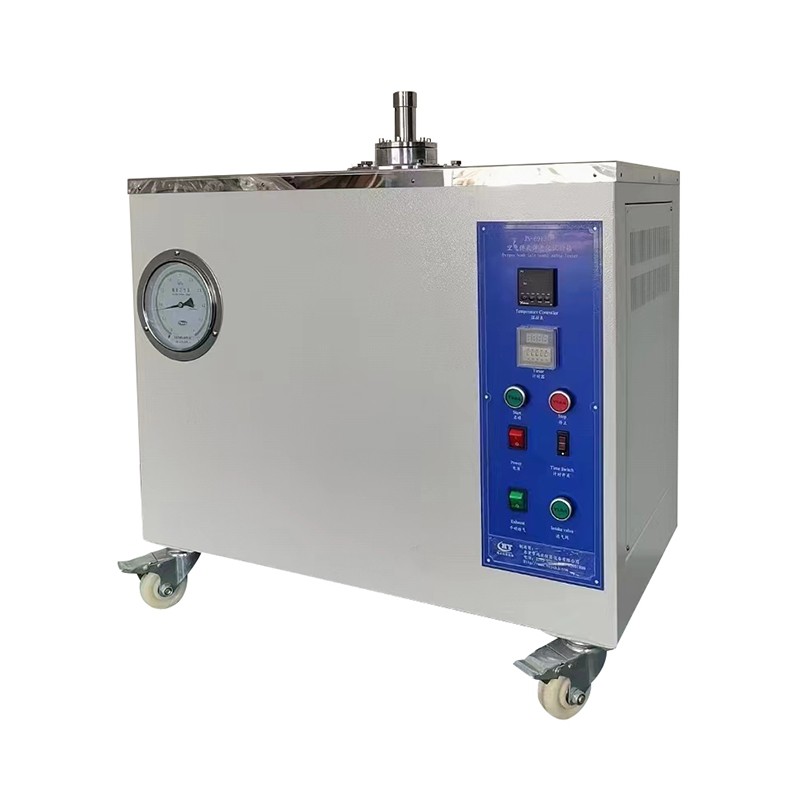

The test device is composed of stainless steel tank container, electrical control cabinet.
The tank consists of outside enclosure, insulation layer, heater, temperature aluminum cover, stainless steel pressure tank, the sample tray, automatic overpressure protection devices and other components.
The electrical control cabinet mainly consists of outside cabinet, power distribution box and gas distribution chassis.

Technical Parameters:

Parameters Name	Parameter Data
Power	AC 220V±10%, 50Hz or match client's local power supply
Maximum Working Pressure	4MP/C㎡
Security Burst Pressure	2.7－3.3MP/C㎡
Temperature self-control range	Room temperature -200℃
Temperature Deviation	±1℃
Temperature control	Digital display automatic control
Tank materials	Stainless steel
Tank volume	4000cm3
Heater power	2.4KW
Dimensions	820×420×670mm
