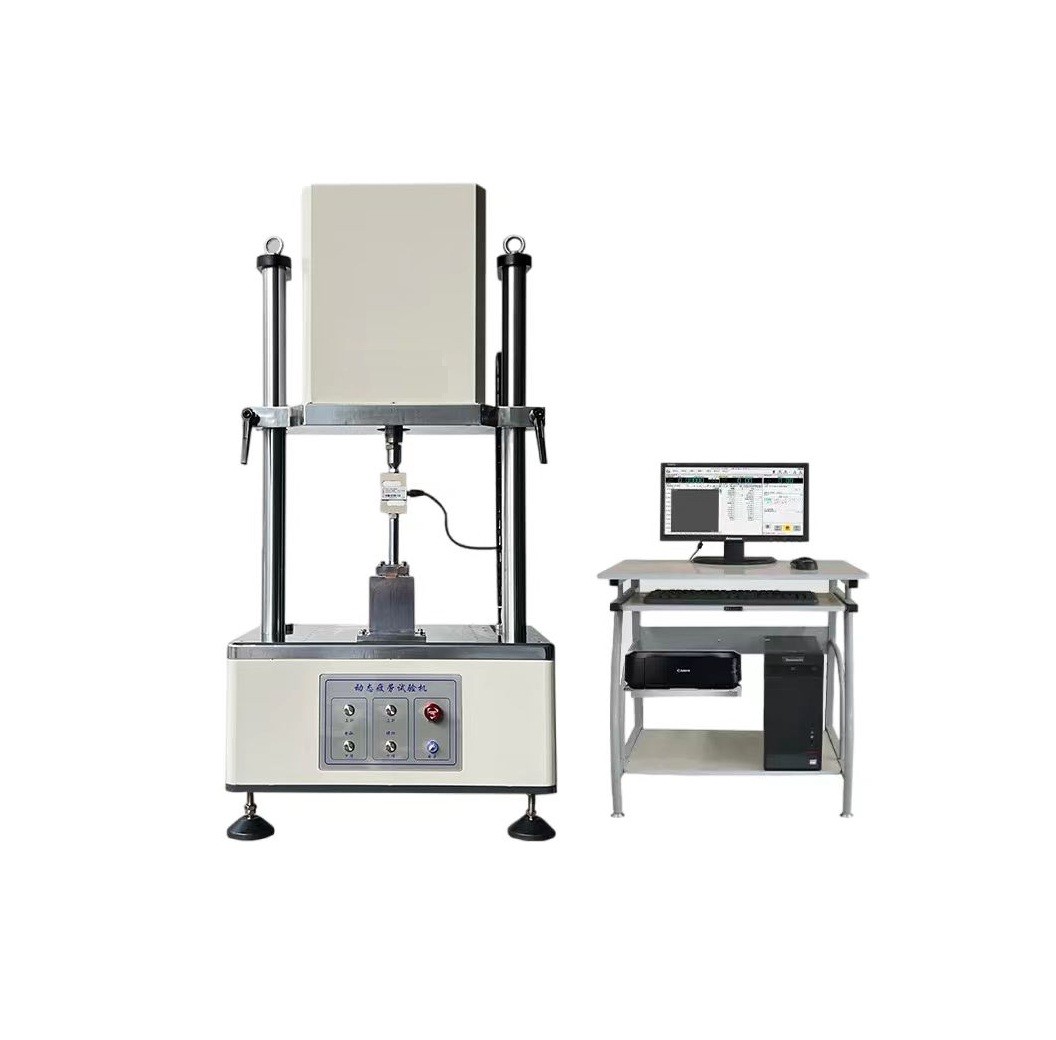

Product Overview：

The biggest difference between this testing machine and other mechanical testing platforms on the market is that it adopts servo+high-speed electric cylinder drive to repeatedly pull and press the product. It is controlled by a computer and can print and store graphics. The testing data is stored on the hard disk (each data can be stored for an unlimited number of times), and the testing conditions are set in writing by the computer, which is convenient and fast.

Application scope：

This test bench adopts the latest servo transmission technology, which can conveniently simulate the dynamic fatigue durability test of materials during use. What is particularly valuable is that this system has achieved dynamic fatigue testing at a low cost.

The loading mechanism of this testing machine adopts a servo electric cylinder with high reliability and easy servo closed-loop control. The electric cylinder converts the rotational motion of the servo motor into linear motion of the push rod through the mechanical motion of the screw and screw pair. By utilizing the closed-loop control characteristics of servo motors, precise control of loading force, speed, and position can be easily achieved; The electric cylinder is installed on the crossbeam, which can be manually adjusted to adjust the test space. After adjusting the test space, the crossbeam is fixed with screws. The electric cylinder adopts Panasonic servo motor and Taiwan precision ball screw, with complete functions, advanced performance, and reliable use.

Computer control

Controlled by a computer, it can print and store graphics, and test data is stored on a hard drive (each data can be stored for an unlimited number of times). The test conditions are set in writing by the computer, which is convenient and fast.

Test items

Tensile test

compression test

Tensile and compressive fatigue test

Tensile and compressive retention force test

Constant force test

Constant deformation test
