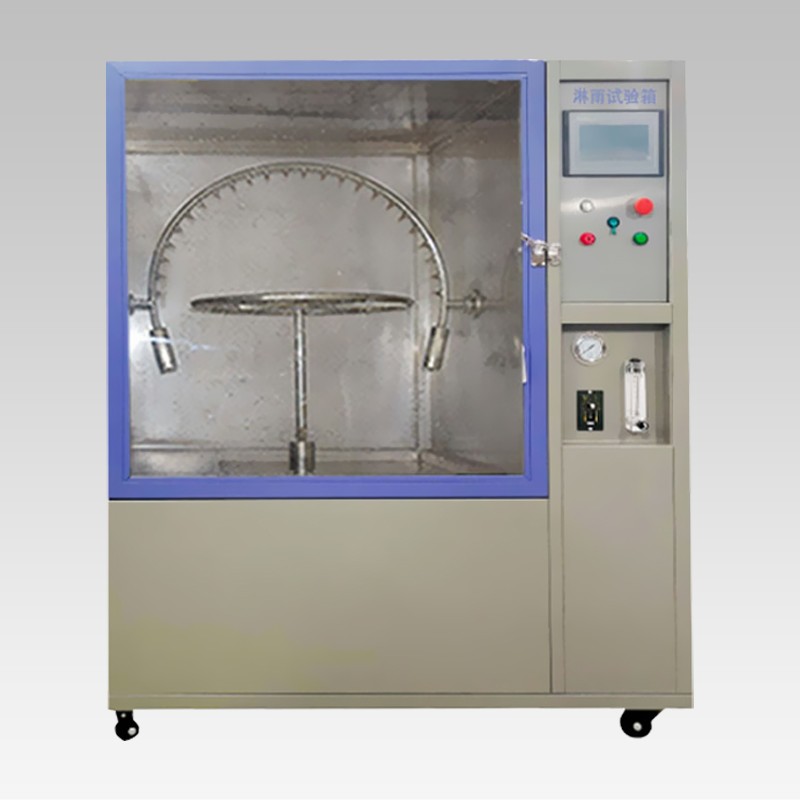

Manufacturer IPX34 Rain Spray Simulation Environmental Test Chamber

IEC60529-2001, GB4208-2008, GB2423.23, GB5170.38, GBl0485-93, IPX1.IPX2.IPX3.IPX4 of JIS,DIN, MZl etc. standards

Product description:

Product Details

Product Tags

Applications:This Laboratory Programmable Rain Water Spray Proof Test Equipment used for inspect products performance of electronic products under rain spray conditions. And it adopt scientific design to real simulate environment condition of water drop, spray, splash etc. With frequency conversion technique, the sample holder able to rotate, water spray rod sweep angle and sweep frequency all controllable.Features:1. Spray Pipe:Galvanized tube
2. Water Tank:SUS304 Stainless steel plate
3. Bench:Antiskid aluminum
4. Bench Holder : stainless steel square pipe

Standard Compliance:IEC60529-2001, GB4208-2008, GB2423.23, GB5170.38, GBl0485-93, IPX1.IPX2.IPX3.IPX4 of JIS,DIN, MZl etc. standards

Performance parameters:

Model	BK-LY-800	BK-LY-1000
Test Space W x H x D(mm)	800x800x800	1000x1000x1000
External Dimension W x H x D(mm)	1160x1640x960	1360x1840x1160

Performance parameters:

Test Bench Speed(rpm)	1-5 (Adjustable)
Turntable Diameter	φ 300mm
Turntable Load	20KG
Intermittent be Caught in Time	15min/25min
Speed	5-10 s/rpm
Water Ring Radius	375mm,pipe diameter Φ16mm
cNozzle Jet angle	40°,90°,135°fix direction, water spray towards rotary center.
Each Spray Hole Flow	100±5 L/min(adjustable),flow display direct reading.
Water Spray Pressure	200-400, a pressure gauge directly reading,
Test Time	1-999,999min(adjustable)
Safety Protection	Power overload, short circuit protection, earthling protection, water protection and alarm-ring tip.
Power Supply	AC220V / 50Hz /1.0KW
