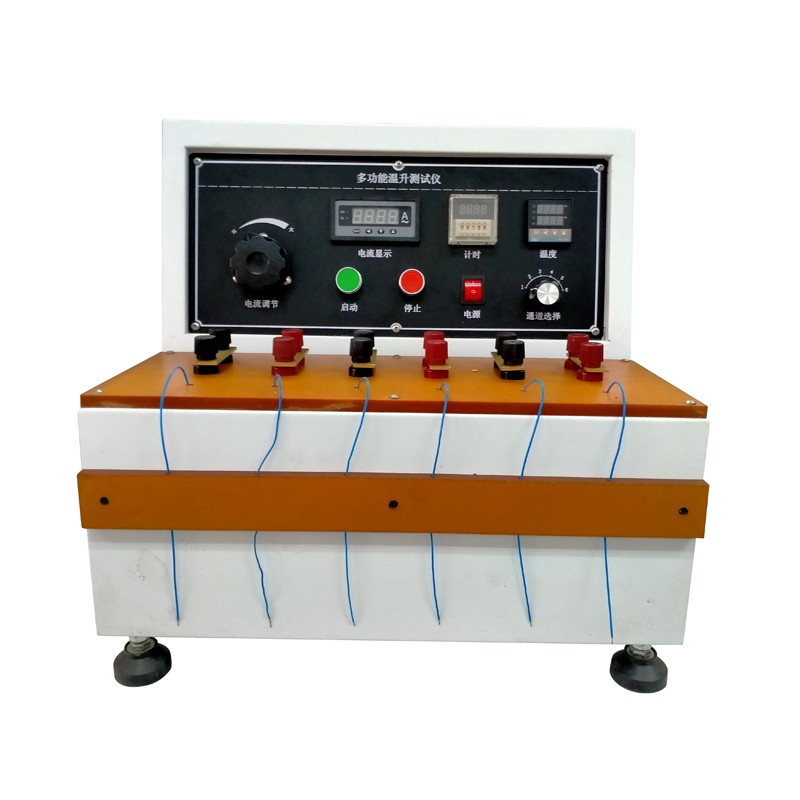

IEC 60884-1 Clause 19 Plug Socket Temperature Rise Test Equipment

IEC 60884-1:2013 clause 19 figure 44

Product description: IEC 60884-1 Clause 19 Plug Socket Temperature Rise Test Equipment is conforming to IEC 60884-1:2013 clause 19 figure 44, and required by many test standards, such as IEC 60998-1, VDE 0620. It is inten

Product Details

Product Tags

IEC 60884-1 Clause 19 Plug Socket Temperature Rise Test Equipment

Product information:

This series of temperature rising test apparatus is conforming to IEC 60884-1:2013 clause 19 figure 44, and required by many test standards, such as IEC 60998-1, VDE 0620. It is intended for testing the temperature rise under normal operation of electrical appliances's plugs and sockets.

Technical parameters:

Item	SN2119	SN2119A	SN2119B
Working station	6	6	6
Testing current	0-40A	0-125A	50-1000A is adjustable
Testing voltage	＜12V	＜12V	5V,12V,24V,48V
Timer	0-9999s is adjustable, digital display	0-9999s is adjustable, digital display	0-9999s is adjustable, digital display
Temperature measuring meter	0-150℃ digital display	0-150℃ digital display	0-150℃ digital display
Power supply	220V,50Hz (can be customized)	220V,50Hz (can be customized)	220V,50Hz (can be customized)
Applied standard	IEC 60884-1 2013	IEC 60998-1	UL
Test object	Plug pin	connector	circuit board
