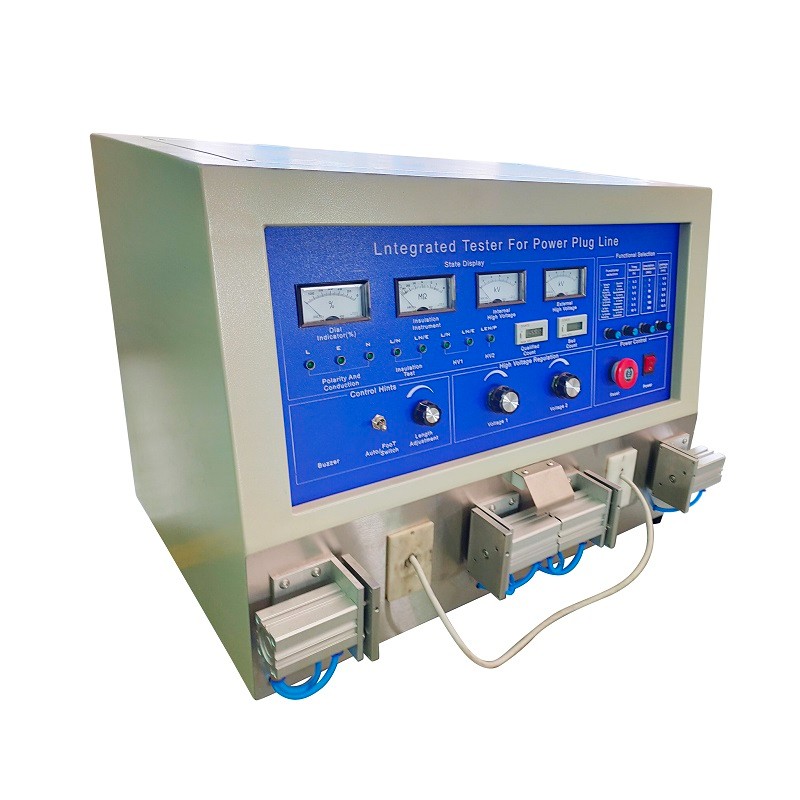

Power Cord Cable Tester Product Application

Meet the standards: BSI, UL, VDE, CSA, SAA, T-MARK, KS, IRAM, CCC and other national standards
Scope of application: Detecting the polarity conduction, insulation, core high voltage and copper leakage of the power cord cable.

SPECIFICATIONS FOR POWER CORD CABLE

Technical Index Tech-Parameters

Polarity: Break over, short circuit, open circuit, dislocation

Leakage current: Setting Range:0.5, 1.0, 2.0, 3.0, 5.0, 10mA

Internal High-Voltage: Output 0---5KV(500VA) Adjustable

External High-Voltage: Output 0---5KV(500VA) Adjustable

Operating Voltage: 220VAC 12A 50\60 HZ

Voltmeter High-voltage: range:0-5KV

Resolution: 0.5 level

Insulation Voltage: Output Voltage:DC500V

Insulation resistance : Range:2,7,20,50,100,200MΩ

Voltage withstand time: Timing Range:0.1-99.9/S

Min time for item: measuring:0.3S

Wire sensitivity: >10pF

Barometric Pressure: <4 Kgf/cm2

OK Product: Automatic printing and push out, counting, and indicator ON

NG Product: Automatic model locking, counting,indictor ON and buzzer ringing

Safeguard: electric leakage, Short circuit ,overheating

Size: (W)730*(D)530*(H)500 (mm),

Machine Weight: 68Kg

Main Features

1. High quality component, modular design easy operate.
2.Accuracy test, enhance 30% test speed compared with the other DC plus tester.
3.Test cable type: single or double port for option
4.Save labor cost and improved output.
5.Automatic push out the qualify cable, and locking the defective product.
6. Software and hardware can be customized.
7.Test fixture tool can be customized by clients requirement, pricedepends.
