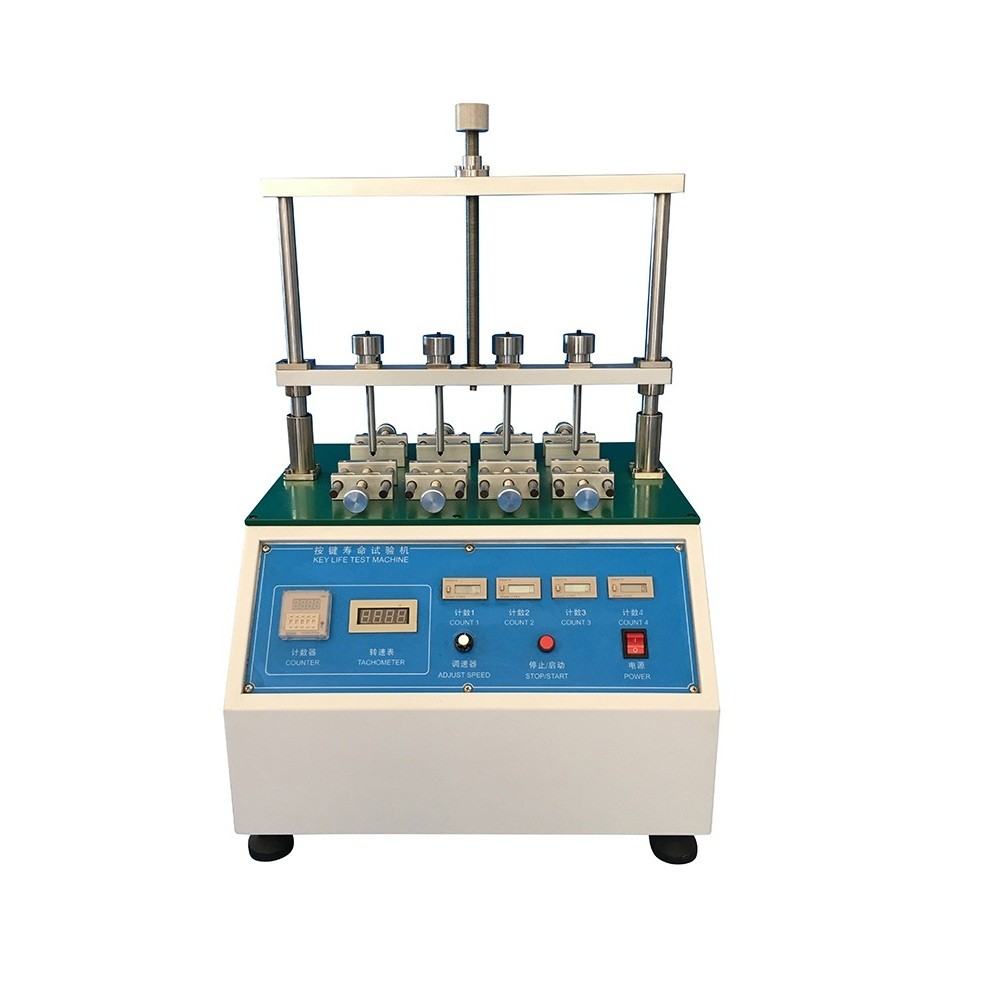

Button key durability life test machine

Computer Keyboard Keys Testing Machine Button Life Tester

Product description: Button life testing machine is suitable for mobile phones, computers, electronic dictionaries, Bluetooth headsets, car players, remote control buttons, vehicle anti-theft devices, fax machine buttons

Product Details

Product Tags

Products Description

It can accurately reflect the fatigue life of keys (silicone rubber) or the mechanical life of conductive glue. Using embedded microcomputer technology, you can set the number of work, sampling counting rate, allowable counting error, and so on.Suitable for life aging test of key switches, computer keyboards, electronic dictionaries, remote controllers, mobile phones, MP3, conductive rubber keys or similar keys.

Specification:

Test station	4 (working at the same time)
Load weight	50, 100, 200, 300, 500g each of four (optional)
Test timer	0~99999999 times
Test conduction times counter	0~999999 times (automatic counting when four-station is turned on, and counting automatically when disconnected)
Test speed	5~60 times/min (adjustable knob, LCD display
Test stroke	0~20mm
Conventional clamping range of test fixture	60×70mm (adjustable by hand)
Adjustable range of test rod fixture	0~180mm
Dimensions (LWH)	500×400× 550mm
Machine weight	25kg
