Application :

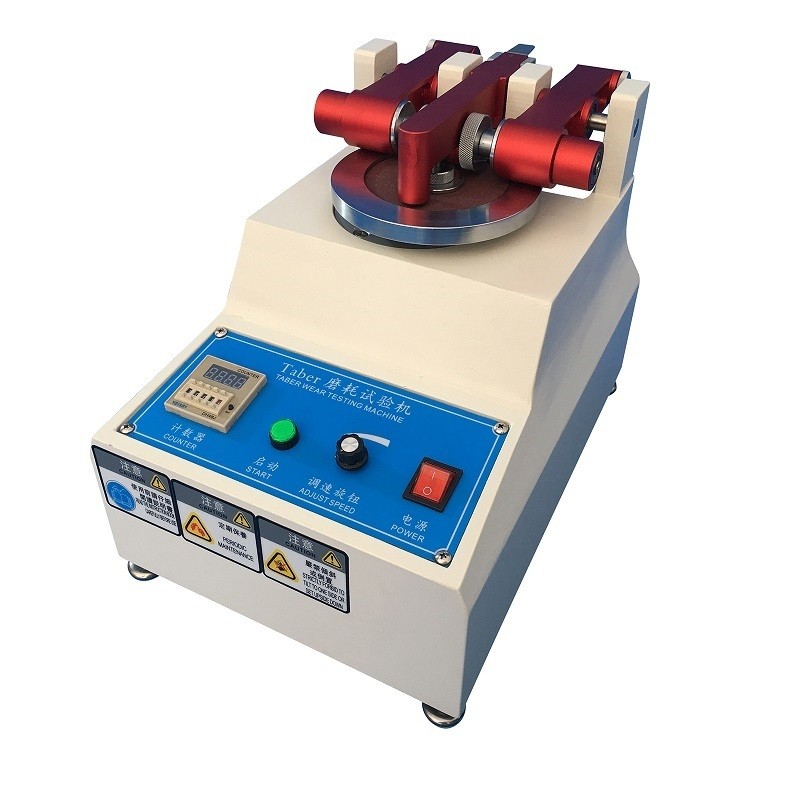

Taber Abrasion Machine.To determine the wear resistance of all kinds of structures including fabrics, leather and rubber, paper, metals, paints, plated surfaces, coated materials, glass etc.

Taber Abrasion Tester (Taber Abraser) uses the X pattern of abrasion produced by a rotary action of a pair of abrasive wheels. Taber abraser supplies with a full range of auxiliary Weights, specimen holders, abrasive wheels, wheel refacer and vacuum unit.

Specifications:

 1.Grinding Wheel: Dia. 2inch

 2.Wear Round Centre Spacing: 53.2mm

 3.Gyration Speed: 60±1rpm

 4.Counter: LCD, 0-999,999 times

 5.Distance between sample to vacuum tube: 3mm

 6.Power:  220 V   50/60 Hz

 7.Weight : 43Kg

480x360x715 mm(LxWxH)

Included Accessories :

 1.Vacuum cleaner

 2.Grinding Wheel –  H-18 FROM US

 3.Loading Weights – 6 pcs for 125cN, 250cN, 750cN

 4.Paster – 1 Pack

 5.Sand Paper – 10 Pcs

Standards :  ISO 5470, ASTM D3884, FED.CCC.5306 / 5309,  TAPPI T476, DIN 53754 / 53799 / 53109
