Rubber plastic double head grinding machine

Usage: The specimens used for abrading rubber, plastic or similar to a certain thickness for other test equipment to test

Product description: Double Head Grinding Machine Equipment

Product Details

Product Tags

Product Description

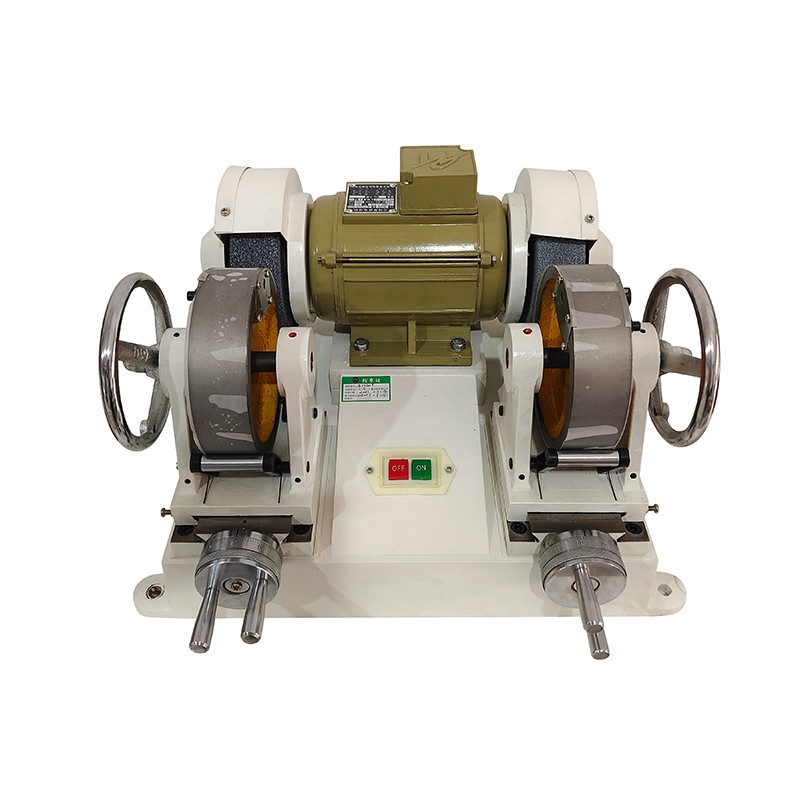

Equipment name: BK-MP-II Grinding machine
Usage: The specimens used for abrading rubber, plastic or similar to a certain thickness for other test equipment to test
Features: With the advantage of two grinding wheels working at the same time. Technical parameter

Model	BK-MP-II
Linear velocity of grinding wheel	12m/s
Grinding wheel size	G260APRI 170×40×32 32 G260APRI 170×40×32 80
Working size	Diameter 160×44(mm) Center height 214mm
Working wheel stroke	20mm
Specimen size	Length>260 Width<=36 Height<=8(mm)
Overall dimension	500×400×314(mm)
Weight	80Kg
