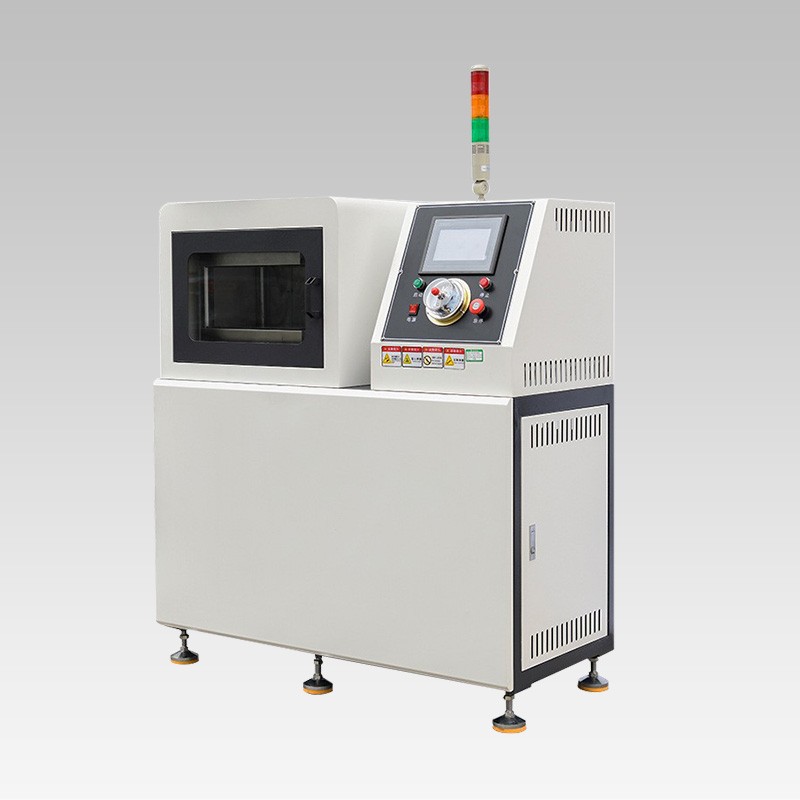

product description:

It has an independent power mechanism and electrical system, and is centrally controlled by buttons. Working pressure and heating temperature can be adjusted within a certain range. This model is divided into manual and semi-automatic.

Technical Parameters:

Temperature range: normal temperature -250°C [customizable maximum temperature 500°C]

Temperature uniformity: 1.5°C [The larger the platen, the higher the temperature, the worse the temperature uniformity]

Temperature controller: precision module, with PLC touch screen control, display in the touch screen, numerical display.

Temperature control method: precise control of the temperature control board, self-tuning with high-precision sensors, temperature control accuracy: ±1.0°C.

Timer: set and display on the touch screen, the time range is 0.1S～99min～9.9hr

Heater: Cylindrical built-in heating mold [configure different power according to the area of the pressing plate, the temperature uniformity of the packaging pressing plate, not the same power]

Heating time: about 15 minutes from room temperature to 160°C

Cooling method: natural cooling

Oil pressure system: CREE.6 hydraulic flow closed-loop control system is adopted. The oil pump drives high-performance electro-hydraulic and the piston of high-precision non-resistance oil cylinder implements equal-rate control mode. Strong, stable lifting; automatic pressurization, pressure maintenance, pressure relief.

Cylinder stroke: Max 150mm [customizable]

Cylinder speed: 11mm/s
