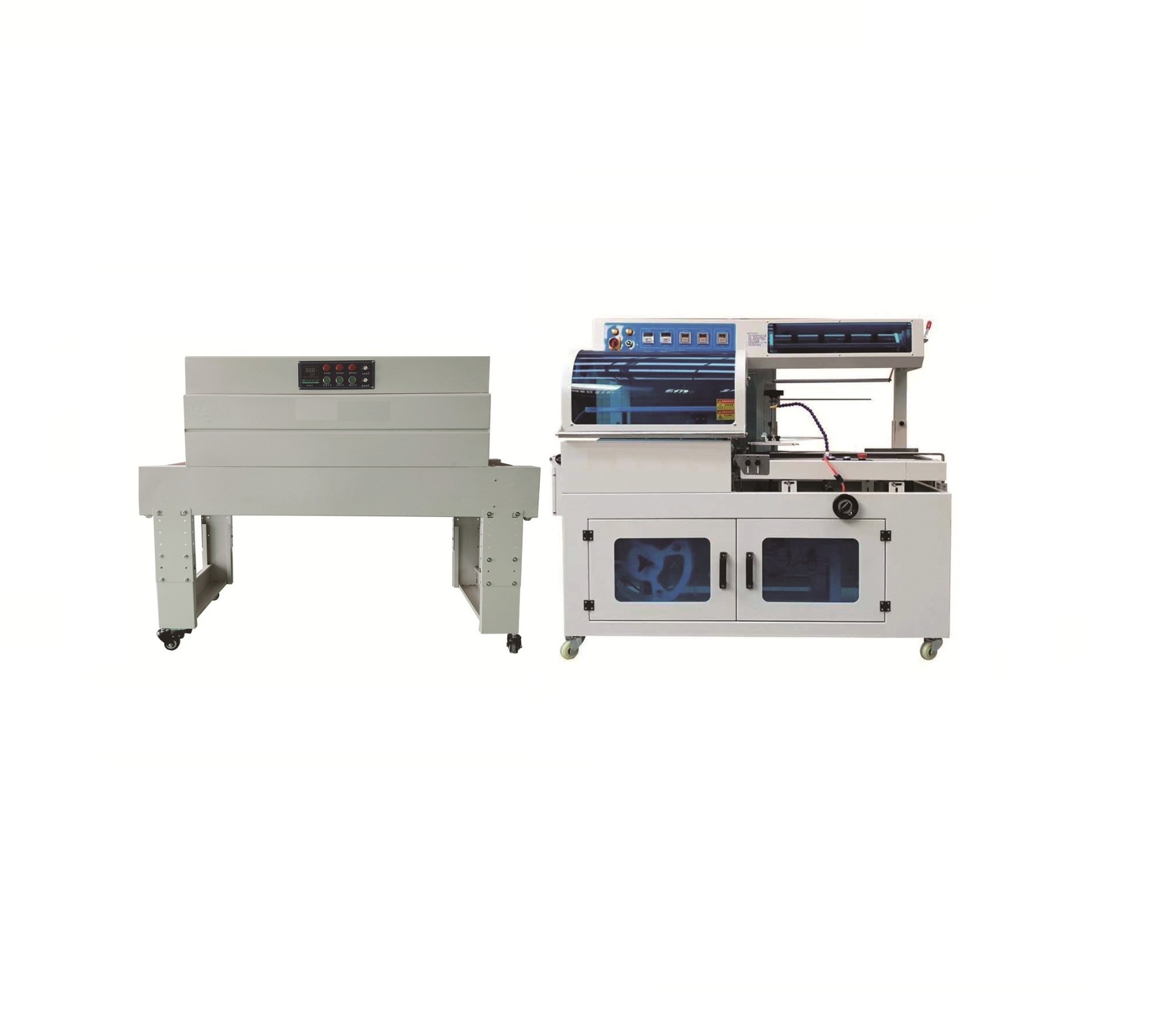

Automatic L Type Sealing Cutting Packaging MACHINE Heat Shrink Machine

Fully automatic sealing and cutting machine
  • Product description: Automatic L-type Sealing and Cutting Machine Cosmetic Heat Shrink Sealing and Packaging Machine
  • Product Details

    Product Tags

    The fully automatic sealing and cutting machine can be used for fully automatic online shrinkage packaging of products. It uses photoelectric detection to automatically detect the products and can choose between automatic feeding or manual feeding modes. It adopts a folded film and can seal the other three sides. The constant temperature heating sealing and cutting system can be used to seal and cut various industrial standard heat sealing films such as PE, PVC, POF, etc. The sealing is firm and beautiful, especially suitable for POF sealing and cutting. When changing the product size, simple adjustments can be made through the handwheel, without the need to replace any components, reducing product replacement time and making it easier to operate. The adjustable front-end feeding system and the back-end storage work platform enable the entire machine to operate at high speed and unmanned automatically.

    L bar sealer

    ModelBK-FQL450A
    Voltage110-240V  50-60Hz
    Power1.6kw
    Speed15-30pcs/min
    Shrink film materialPOF PP PVC PE
    Cutter sizeL570*W470mm
    Max film width520mm
    Max wrapping size(Customizable)(L+H)<520mm, (W+H)<410mm, H<130mm
    Machine dimensionL1700*W830*H1450mm
    Machine weight300kgs

    Shrink tunnel

    ModelBK-BSD4020A
    Voltage220-415V  50-60Hz
    Power9kw
    Speed0-10meter/min(adjustable)
    Shrink film materialPOF PP PVC PE
    Tunnel sizeL1200*W400*H200mm(Customizable)
    Max loading<25kgs(Customizable)
    Machine dimensionL1600*W560*H1460mm
    Machine weight300kgs
