Air Ventilation Aging Test Chamber ASTM D5423 UL1581 ASTM D5374

ASTM D5423 UL1581 ASTM D5374  ASTM-D2436

Product description: Air Ventilation Aging Test Chamber, It is suitable for the thermal endurance test of electrical insulating materials and the air exchange aging test of electronic parts and components as well as plast

Product Details

Product Tags

Air Ventilation Aging Test Chamber ASTM D5423 UL1581 ASTM D5374 ASTM-D2436, CNS3556, CNS742, JIS7212, JIS B7757, GB, VDE test standards.

Product Description:

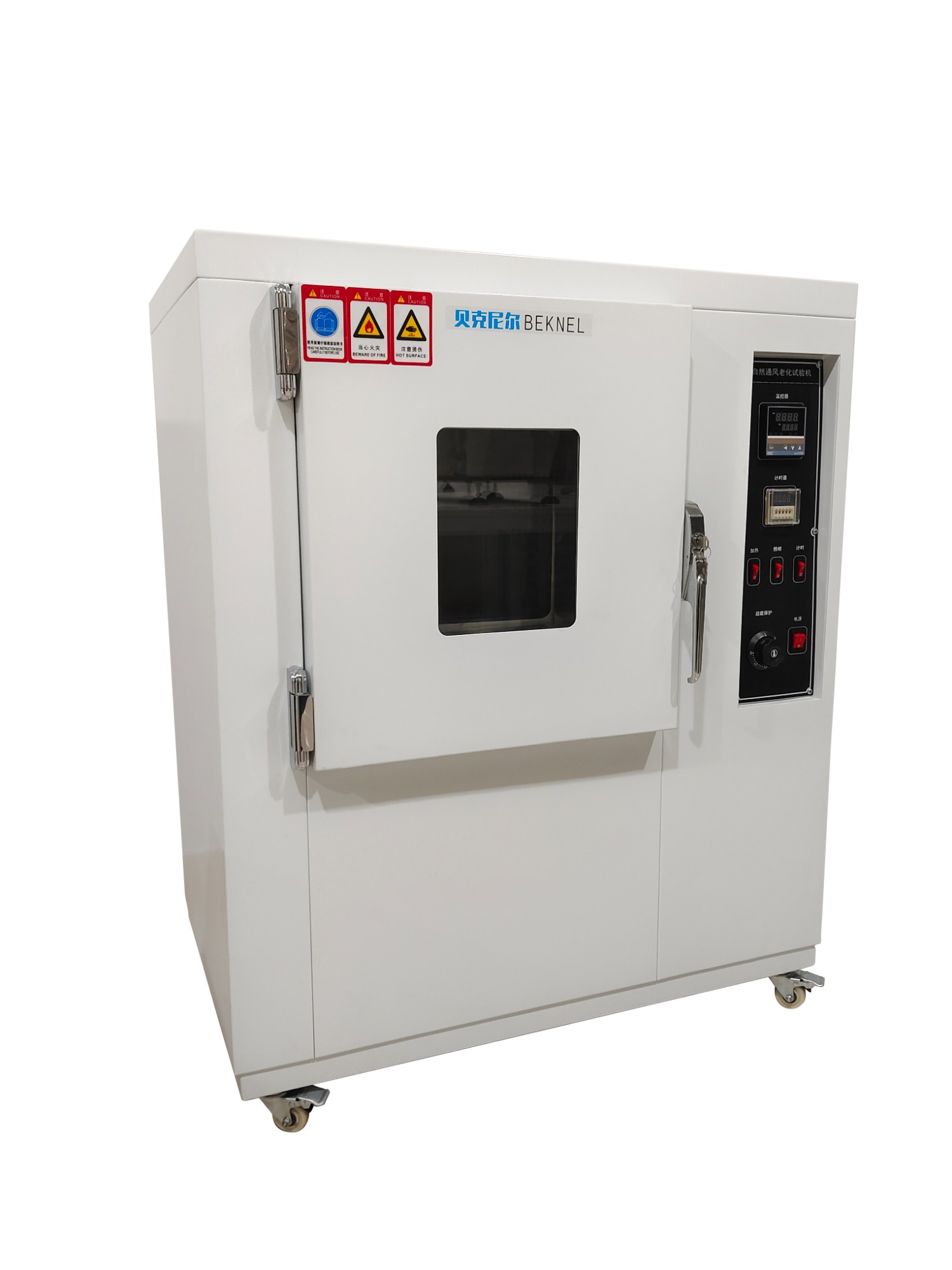

Ventilation aging test chamber is used to test wires, cables, insulators, or rubber specimen, to compare the tensile strength and elongation of specimens before and after aging test. Aging chamber adopt hot air circulation, prompting specimen aging, strong closed inner chamber, swap air device, over-temperature automatically cut off protection device.

Technical parameters:

1. Testing space: 100L(500*500*400mm).

2. Temperature: RT~200°C, resolution: 0.1 degree, accuracy: 0.5 degree.

3. Rotation:0-120 time/H

4. Ventilation adjusted: Auto-tuning type

5. Ventilation system: Using voltage regulator to change the volume of air.

6. Built-in circulating air system: ensure the temperature uniformly 1%.

7. Protector: over-temperature breaker

8. Sensor: high-accuracy PT100 thermocouple. Temperature fluctuation 0.5%

9. Controller: PID electronic digital control+S.C.R

10. Heating: Chrome steel strip wire heater

11. Power Source: 380V; 60/50Hz
