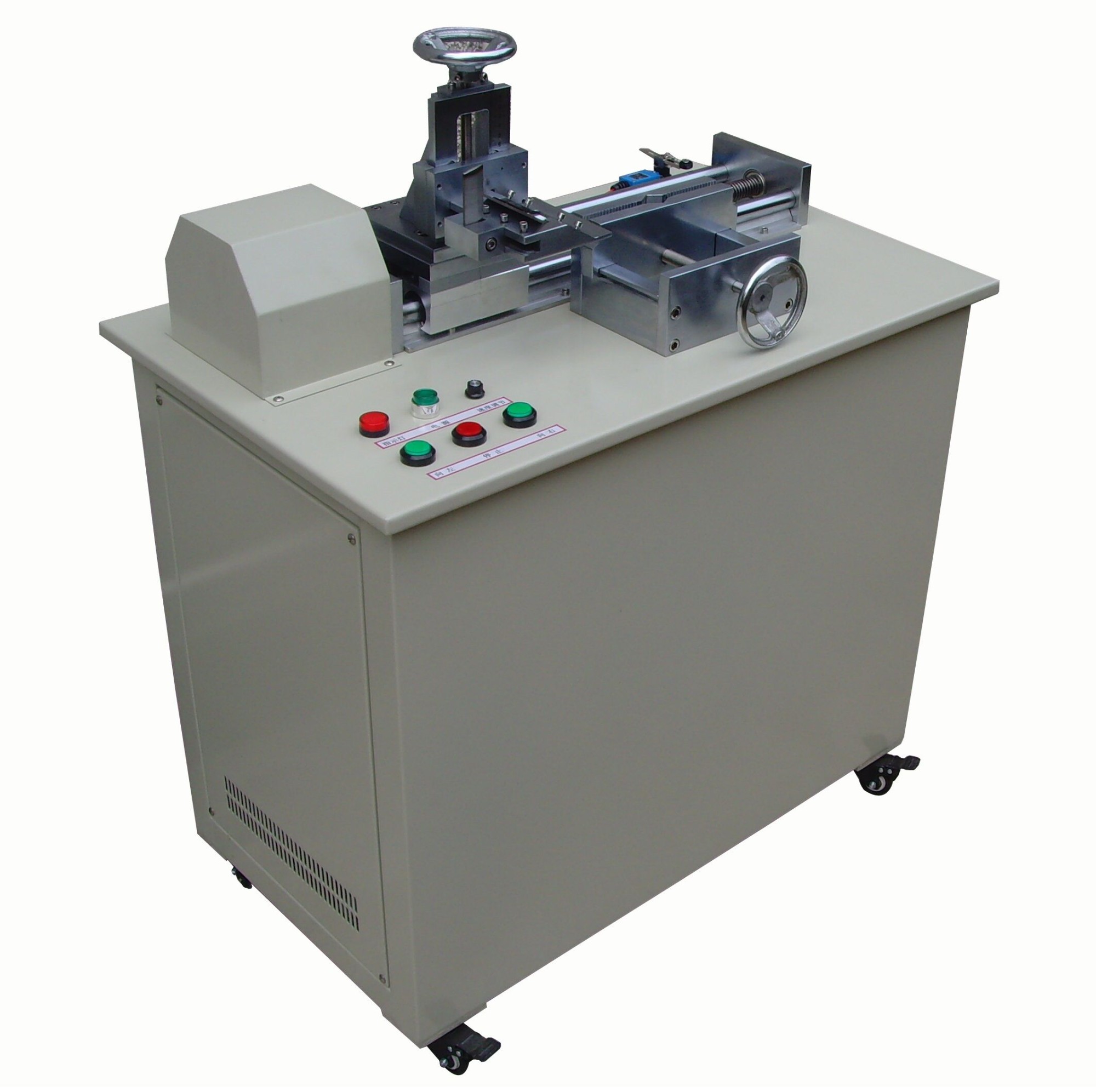

IEC60502 Cross-Linked Cable Horizontal and Vertical Slicer / Cross-linking Cable Cutting Machine

1. Product specifications

This machine is applicable to GB/T2951-2008 "General Test Methods for Cable and Cable Insulation and Sheath Materials" and GB12706.1-2008, IEC60502-1:2004, GB11017-2002, IEC60502-1:2004 and other standard test requirements. Applicable to large cross-linked cables and control cables. It is an indispensable test instrument for preparing insulated and sheathed samples. It is used to complete the thermal extension test and tensile test of the sample (making standard dumbbell samples), and further evaluate the mechanical properties of the samples and physical properties, so that the product meets the standard requirements. The sliding part of the machine adopts the special dovetail slot of the machine tool and the precision drive screw to make the equipment run more smoothly and accurately.

2. Main parameters

(1) Maximum working length: 400 mm.

(2) Cutting thickness range: 0.5 ~ 2.0 mm.

(3) It can be cut test piece diameter: Ф10 ~ Ф40 mm (cable section section, optional Ф160 mm fixture plate).

(4) Cutting speed: fixed speed, about 150 mm/min, factory standard type. (Optional, 370W inverter motor, speed 0.1 ~ 300 mm/min, adjustable.)

 (5) Cutting method: the sample is fixed, the blade moves horizontally;

The knife holder is adjustable up and down, the range is up to about 150 mm, and it is manually adjusted.

 (6) Cutting tools: a random set of 1 (medium knife and cutting knife), sharp level.

 (7) Drive: motor 0.37 kw, electric type.

 (8) Power: AC 220V / 50Hz.

 (9) Machine dimensions: about 1140 x 520 x 1260 mm.
