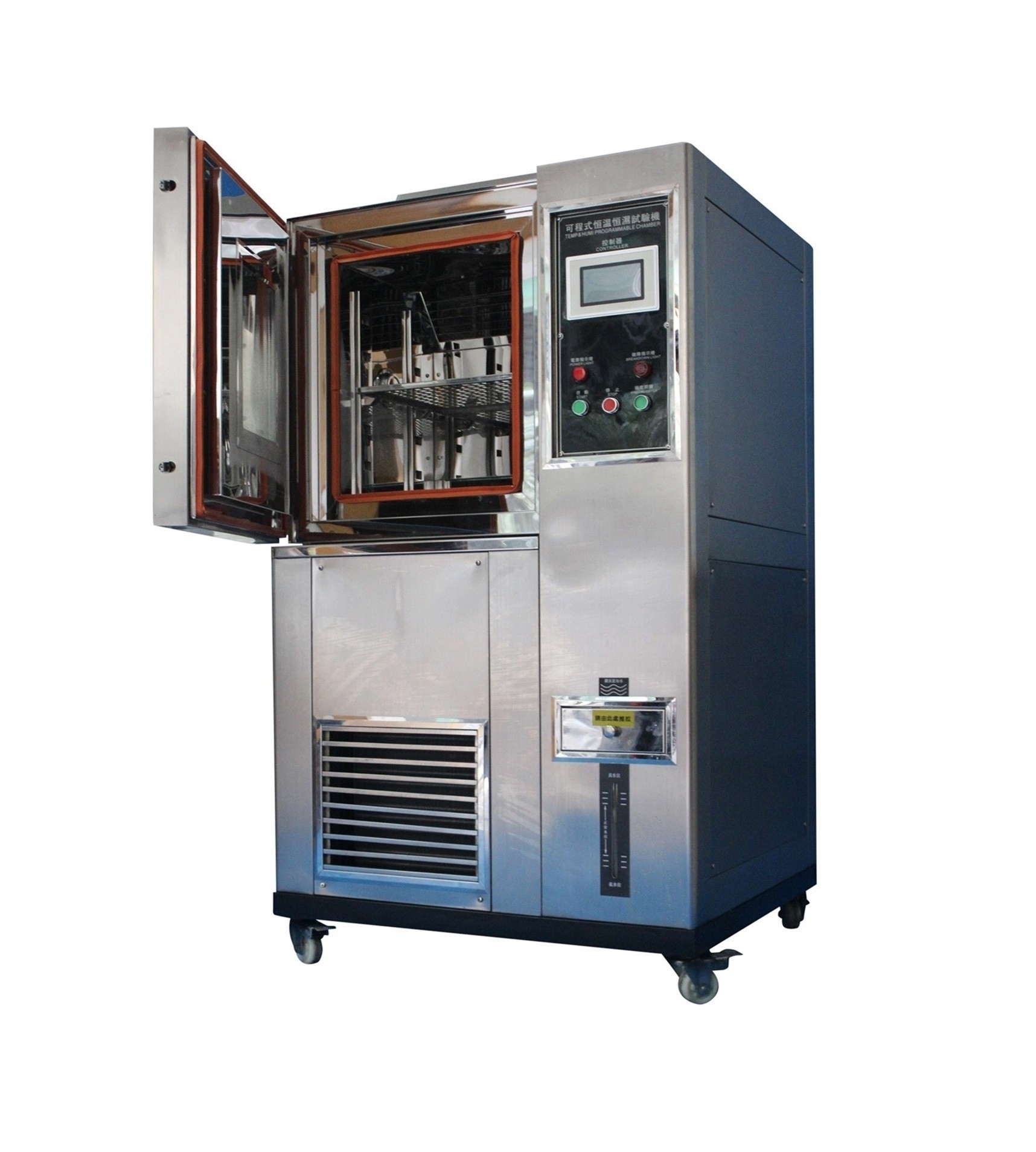

80L Temperature Humidity Chamber

Environmental Programmable Temperature and Humidity Chamber

Product description: Temperature humidity test chamber is used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of electronic product

Product Details

Product Tags

Temperature Humidity Chamber Climate change tester

Introduction:

Environmental Programmable Temperature and Humidity Chamber Climatic Stability Test Equipment

is for testing material heat, cold, dry resistance, humidity resistance. It is widely applied for quality inspection for all types of electric products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries by constant high low temperature change, damp heat etc environment simulation reliability test.

Standard:
Performance indicators meet the requirements of GB5170, 2, 3, 5, 6-95 "Basic parameters verification methods for environmental test equipment for electrical and electronic products low temperature, high temperature, constant humidity and alternating humidity and heat test equipment".
Basic environmental test code for electrical and electronic products test A: low temperature test method GB 2423.1-89 (IEC68-2-1)
Basic environmental test code for electrical and electronic products test B: high temperature test method GB 2423.2-89 (IEC68-2-2)
Basic Environmental Test Rules for Electrical and Electronic Products Test Ca: Constant Humidity and Heat Test Method GB/T 2423.3-93 (IEC 68-2-3)
Basic Environmental Test Rules for Electrical and Electronic Products Test Da: Alternating Humidity-Heat Test Method GB/T423.4-93 (IEC68-2-30)

Parameter:

Model		BK-80	BK-150	BK-225	BK-408	BK-800	BK-1000
Inner Size W×H×D(cm)		40×50×40	50×60×50	50×75×60	60×85×80	100×100×80	100×100×100
External Size W×H×D(cm)		93×155×95	100×148×106	117×166×118	122×176×121	158×186×148	158×195×168
Volume(L)		80 L	150L	225L	408L	800L	1000L
Temp&Humi Control Range		Temp. Range: A: -20℃～150℃ Humi.range: RH20%-98% B: -40℃～150℃ C: -70℃～150℃ (Other temperature and humidity range can be customized)
Temp&Humi Fluctuation		±0.5℃；±2.5%RH
Temp&Hum Departure		±0.5℃-±2℃；±3%RH(>75%RH); ±5%RH(≤75%RH)
Controller Resolution		±0.3℃；±2.5%RH
Controller Brand		BEKNEL
Material	Inwall	SUS 304# steel plate
	Housing	SUS 304# steel plate surface fog processed
	Heat Insulator	resistance to high temperature, high chlorine acid b vinegar foam insulation materials
Air Circulation Way		centrifugal fan-broadband type force air circulation
Refrigeration Way		cascade type multiple refrigeration
Refrigerater		fully enclosed piston compressor Taikang France
Refrigerants		R4O4Aor American dupont environmental protection cold media(R23+R404)
Condensing Way		Air-cooling
Heater		nickel chrome heating wire heater
Humidifier		semi-closed steam
Water Supply Way		automatic cycle water supply
Standard Accessaries		50mm test hole on the left....................................................1PCS PL inner lamp................................................................................1PCS Adjustable clapboard.................................................................2PCS Humidity cloth...............................................................................1Bag Fuses...................................................................................................3PCS Power line.......................................................................................1PCS Software CD....................................................................................1PCS Operation manual........................................................................1PCS
Safety Devices		Leakage current Overload Compressor overload Over temperature Ultra-wet/dry Humidification temperature protection.
