Shore A & D Durometer Hardness Testers for Measurement

A type 0-100HA,D type 0-100HD,C type 0-100HW

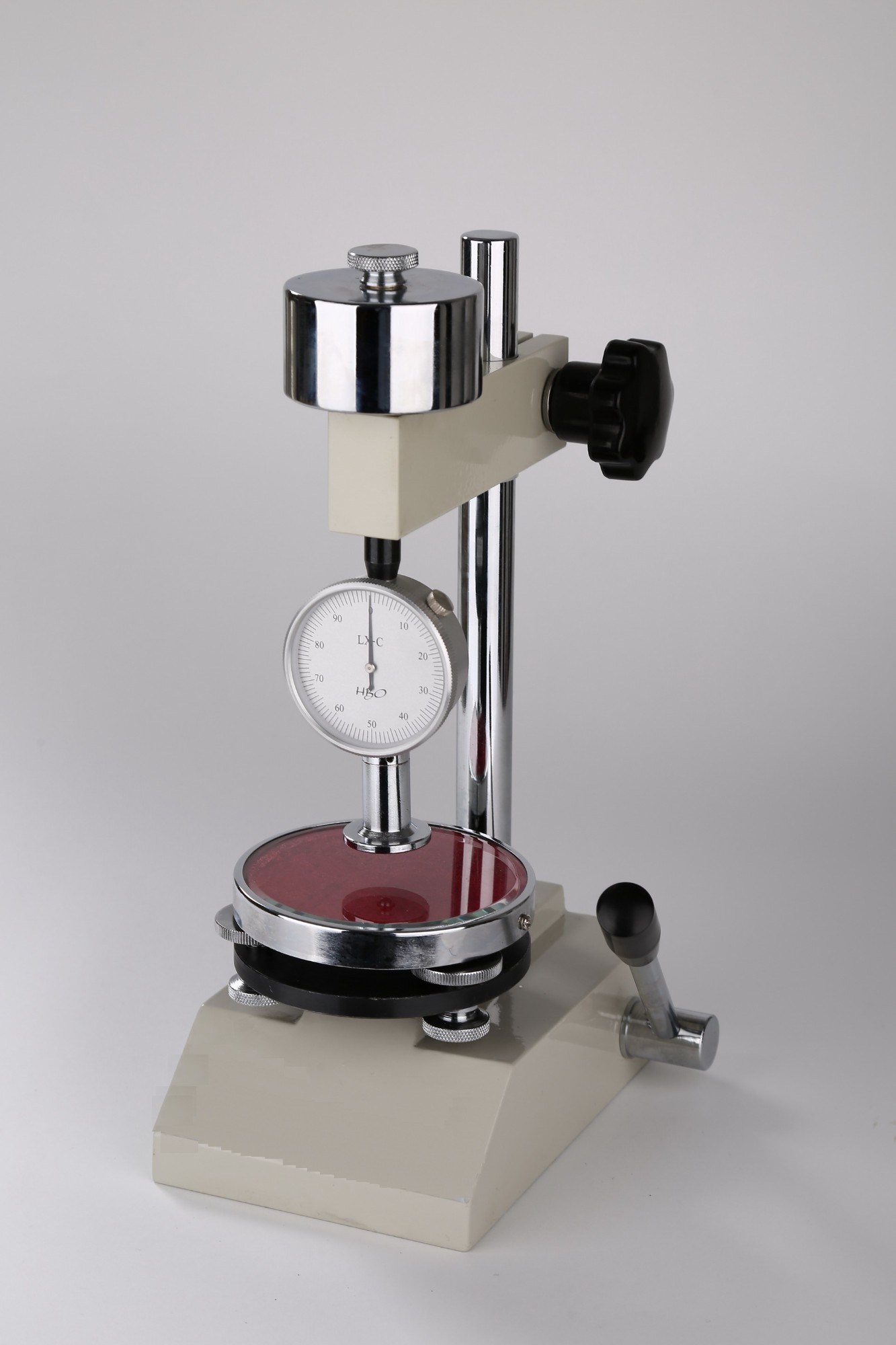

Product description: Shore A & D Durometer Hardness Testers for Measurement

Product Details

Product Tags

Product Description

Shore hardness is a measure of vulcanized rubber, rubber and plastic hardness instrument, which has A-type, D type, C type three kinds of patterns. A-type and D type were applied to the low hardness and high hardness in the hardness of rubber materials. C-applied compression rate of 50%, the stress 0.049Mpa above, the use of rubber and the use made of plastic foam in the shoe with micro hardness testing. The hardness Executive GB/T531, GB2411, HG/T2489JB6148 requirements.

Technical parameter:

Dial Value	A type 0-100HA,D type 0-100HD,C type 0-100HW
Pressure needle stroke	0-2.5mm
Pressure needle tip pressure	A type,C type Z0.55N-8.06N D type 0-44.5N
Accuracy	±1HA
