Functional features:

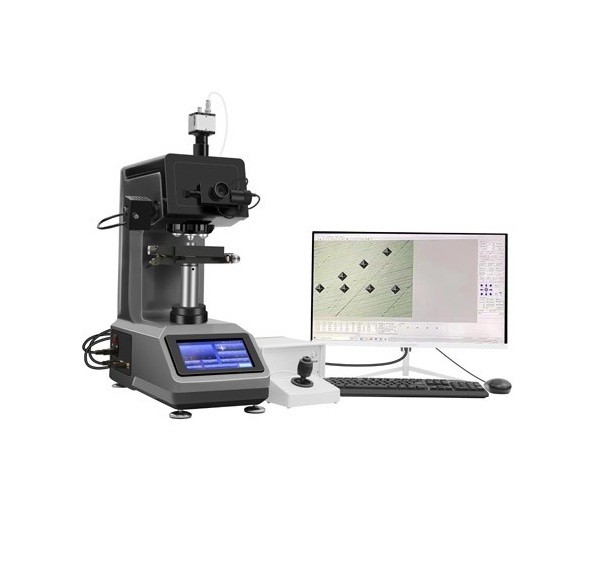

This instrument is a new generation fully automatic Vickers hardness tester and tablet integrated design. Equipped with the Windows 7 operating system, it has all the functions of a computer. By using a built-in CCD image acquisition system, the tested indentation can be directly displayed on the tablet computer, and the touch screen buttons can automatically test the Vickers (or Knoop) hardness value. This solves the problem of using a microscope to measure the diagonal length of the indentation in a micro Vickers hardness tester. It avoids the irritation and visual fatigue caused by the light source of the microscope to the eyes, and protects the vision of the experimental personnel.

Using an industrial tablet computer combined with a hardness tester, all parameters required for testing are selected on the tablet computer, with clear and intuitive display and easy operation.

Equipped with a built-in CCD image acquisition system, the indentation display is clear and intuitive, and the hardness value can be read by simply touching the button.

Testing with micro Vickers and Knoop hardness; Two indenters and three objective lenses, with automatic recognition and turret between the indenter and objective lens, and automatic measurement of micro Vickers and Knoop hardness values.

L has the function of converting hardness scales, which can be converted between different hardness scales.

The system supports two languages: Chinese and English.

Equipped with USB interface, VGA interface, network interface, and hardness test results, printed and output through USB interface, and uploaded and shared through network connection.

Automatically record measurement data, generate hardness depth curves, and save them as WORD or EXCEL documents.

The X-Y electric test bench, with automatic focusing and instrument automatic measurement, fully realizes the automation of micro Vickers hardness testing.

Application scope:

Black metal, non-ferrous metal, IC thin film, surface coating, laminated metal; Glass, ceramics, agate, gemstones, thin plastic, etc; Hardness testing of the depth and gradient of the carbonization layer and quenching hardening layer.
