20kN universal material compression testing machine grips

20kN universal material compression testing machine grips

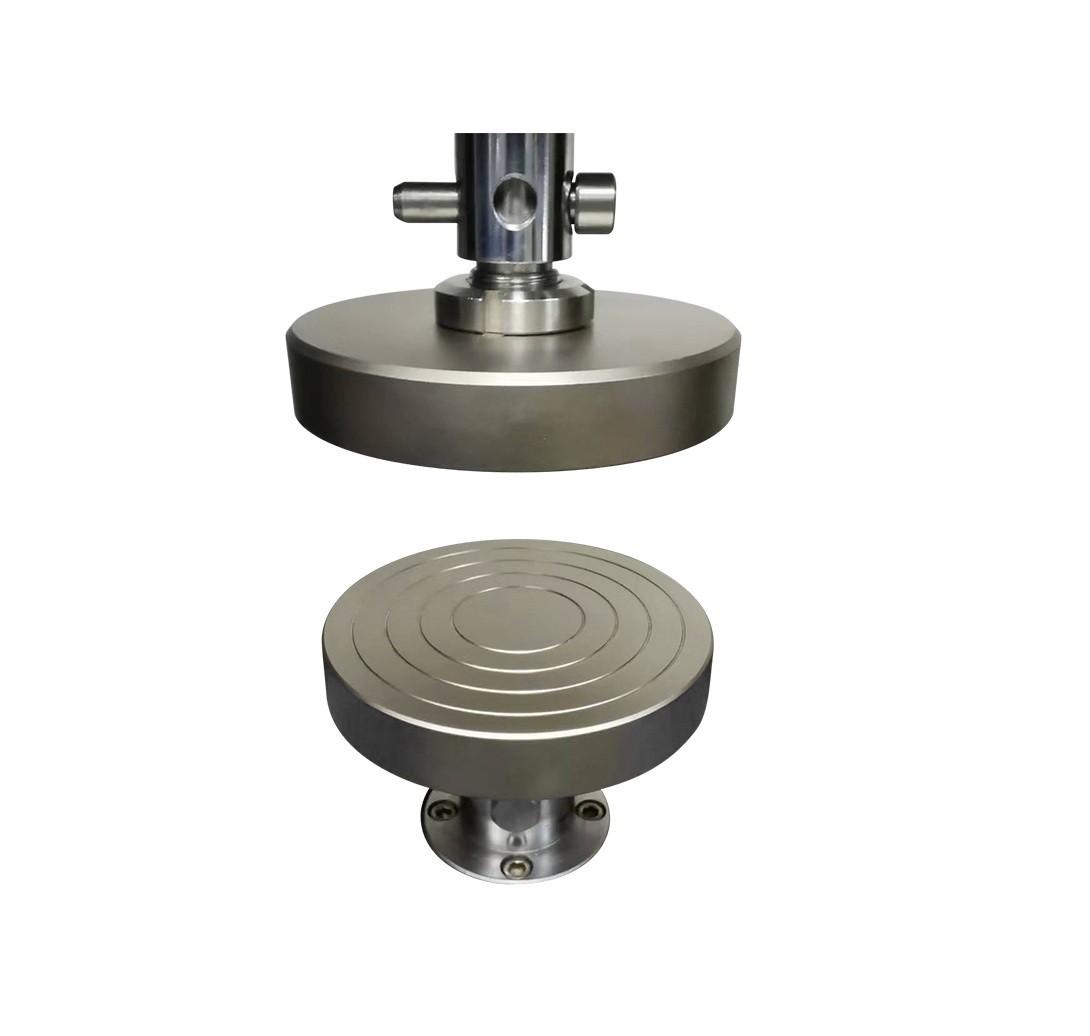

Product description: 20kN universal material compression testing machine grips

Product Details

Optional A or B type connector:

A connector, shaft outer diameter 20MM, length 30MM (with lock

Tight mother)

B connector inner hole 20MM deep 30MM;

The pin hole diameter is 10MM, the center of the pin hole to the connector

The end face distance is 14.5MM.

When not equipped with joints, the clamp body has M12 internal teeth.

The diameter of the pressure plate is 120MM and the thickness is 20MM.
