STM D3574 Foams Ball Drop Impact Rebound Test Machine

Standard D3574 and ISO8307

Product description: STM D3574 Foams Ball Drop Impact Rebound Test Machine

Product Details

Product Tags

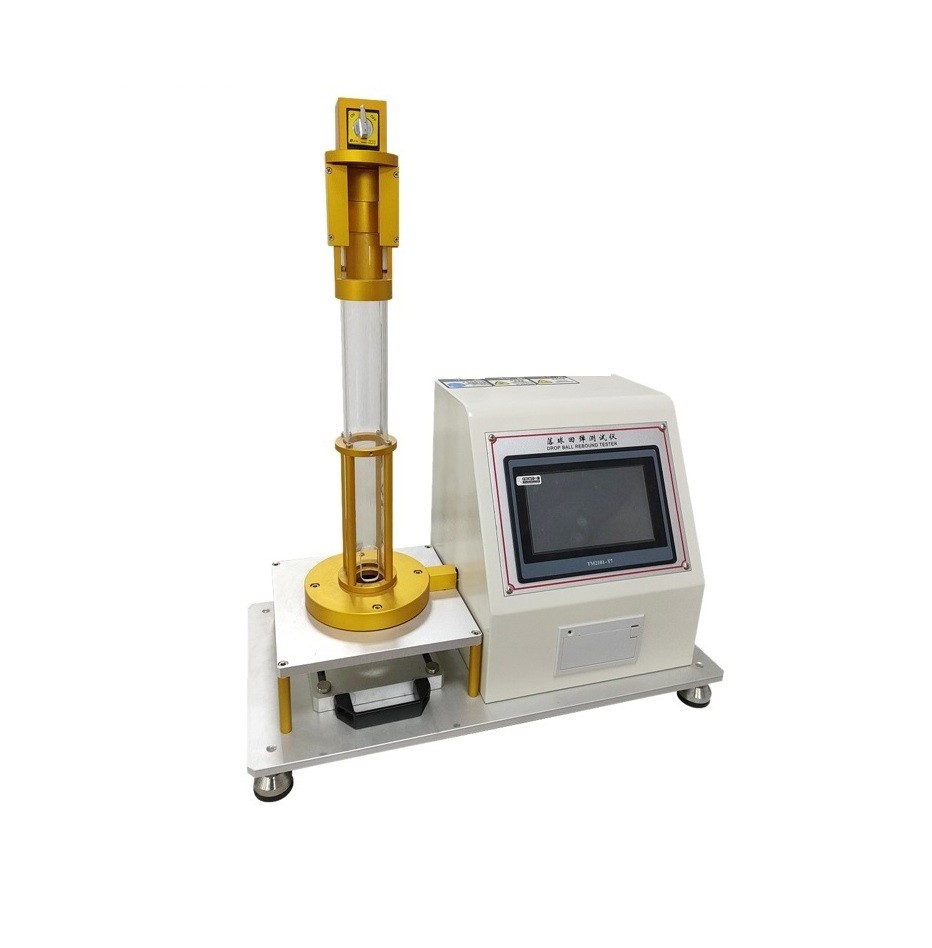

ASTM D3574 Foams Ball Drop Impact Rebound Test Machine

Product introduction:

ASTM D3574 Foams Ball Drop Impact Rebound Test Machine is a cost-effective instrument designed to measure soft materials such as sponges, foams and rubber. The steel ball is mainly freely dropped on a flexible foam or other elastic material sample. The instrument for determining the rebound height is mainly used to determine the rebound resilience (rebound coefficient) in the polyurethane elastic material test item.

Implementation criteria:

GB/T6670-2008 design and manufacture, in line with ASTM American Standard D3574 and ISO8307 technical parameters

Technical parameter:

Power supply voltage	220V 50HZ
Instrument test resolution	1/10000 seconds
Rebound coefficient measurement range	25%-80%
Falling ball rebound rate accuracy	<1.5%
Steel ball drop distance	460+0.5%mm (national standard) 500+0.5%mm (American standard)
Steel ball diameter	¢16-0.05 mm
Automatic calculation of average rebound height
Automatic calculation of average rebound rate configuration
