Introduction:

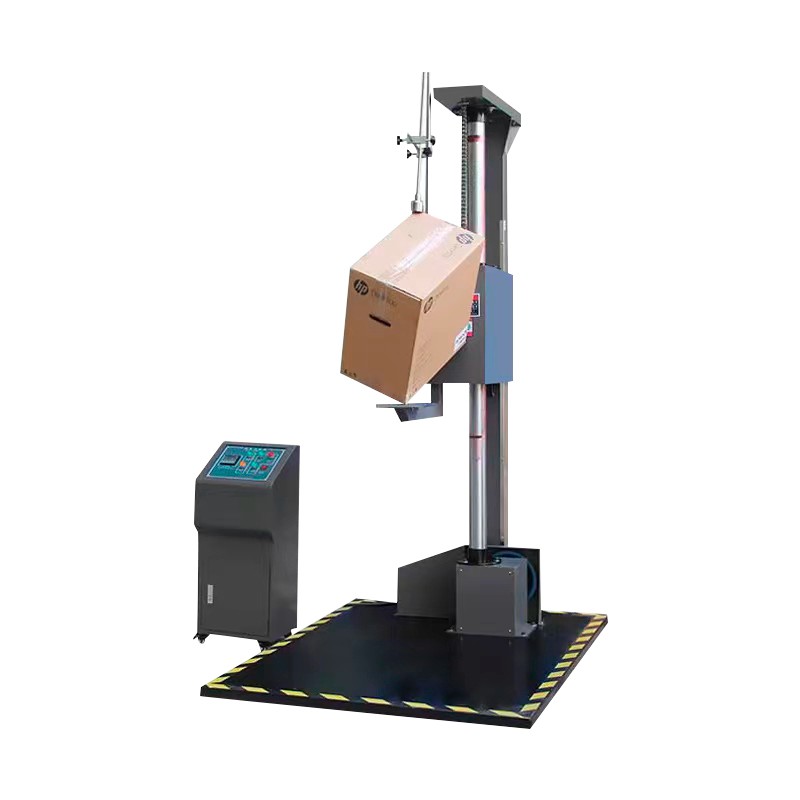

The single arm free fall drop tester is used for evaluating the damage and impact resistance when handling and carrying a package, it is to do a free fall test for the area, angle and edge of the package. The tester equipped with a digital height display and decoder to do the height tracking, ensure to calculate a precision fall height, which the error has no greater than 2% or 10mm. The tester use single arm and double column structure, which can electric reset, electronic control and electronic lifting device, easy using and easy to set the sample.

Features:

1. Conformance to ISO2248, JIS Z0202-87, GB/T4857.5-92

2. With all double arm tester function

3. The lowest fall height can be 300mm.

4. Auto-reset function, no need to have manual work.

5. Better accuracy for the angle and edge testing.

Parameter:

Height display: digital

Fall height: 30-150cm (adjustable)

Max weight of sample: 80kg

Max dimension: 600*800*1000mm (L*W*H) (can be customed)

Impact area dimension: 1150*1650 (L*W)

Fall height error: equal or smaller than ±2%

Parallel error of pallet and impact area: equal or smaller than 2°

Height of tester: 2300mm

Weight of tester: 500kg

Power supply: AC 380V, 50HZ

Control box: split-type
