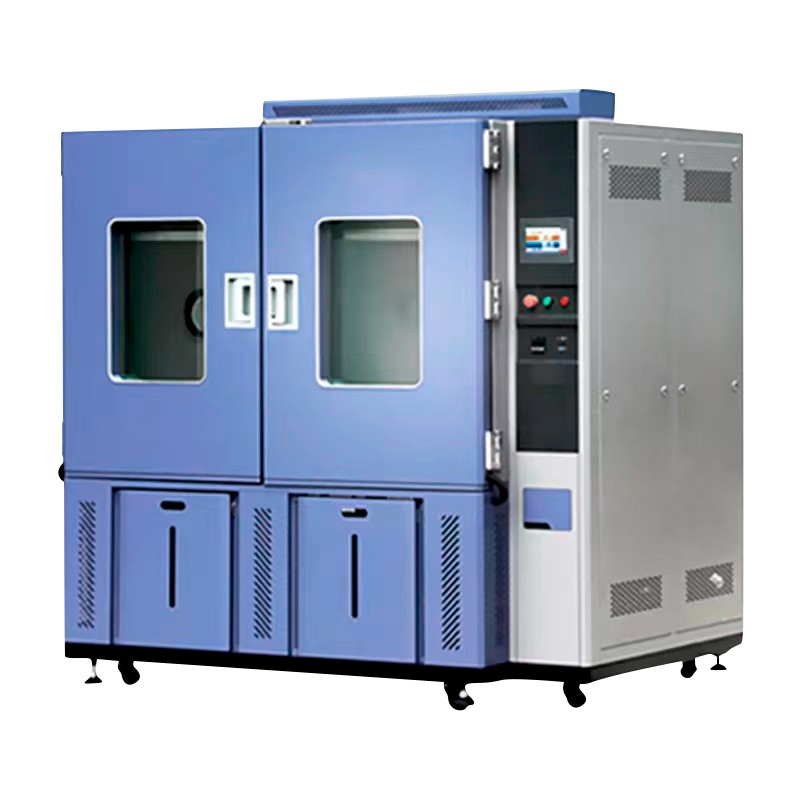

Double door constant temperature and humidity test chamber

Meet IEC61215 and IEC61646 Test Standards;

Product description: Double door constant temperature and humidity test chamber is widely used in scientific research, research institutes, quality inspection institutes and other industries to do warm and humid heat test

Product Details

Product Tags

Product Description

Double-Open Swing Door Temperature and Low Humidity Test Chamber

1. Application:

Temperature humidity chambers doing 85% at 85C testing. You can see the new design and testing performance.

2. Features:
1. Compact Design, Small Overall Dimension, Big Volume;
2. Modular Design and Manufacturing, Easy Operation and Maintenance;
3. 7-inch True Color Touchscreen Controller;
4. Copper-tube-bending Technology, Energy-saving Refrigeration System, Environmental Friendly Refrigerant;
5. International Standard Electrical control cabinet;
6. Chinese, English, the Russian Language Supported HMI Interface;
7. Manuals, Diagrams, etc. Documents Supported;
8. Meet IEC61215 and IEC61646 Test Standards;

Temperature Humidity Test Chamber Technical Specifications

Model	BK-MH-408R	BK-MH-408L	BK-MH-408S
	408L chamber volume
Temp. range	-20°C ~150°C	-40°C ~150°C	-70°C ~150°C
Display resolution	0.1°C
Temperature stability	High±0.5°C, low ±1.0°C
Temperature uniformity	±2.0°C
Heat uptime	-20°C ~+100°C, within 35 min	' -40°C ~+100°C, within 45 min	' -70°C ~+100°C, within 60 min
Pull downtime	-20°C ~-20°C, within 45 min	' +20°C ~-40°C, within 60 min	' +20°C ~-70°C, within 80 min
Humidity range	20~98%R.H,(standard), '10~98%R.H,(with humidifier)
Humidity constancy	±2.5%R.H
Humidity uniformity	±3.0%R.H
Interior Dimension(mm)	700W750H800D
Exterior Dimension(mm)	980W1940H1740D
Interior material	Stainless Steel Plate(SUS 304)
Exterior material	Baked Painting Steel Or Stainless steel(SUS304)
Insulation material	Rigid polyurethane Foam and Glass Fiber Wool
Total power	6KW(heater 3KW included)	'7KW(heater 3KW included)	'9KW(heater 3KW included)
Max current	17A	17A	19A
Water Consumption	1L/hr	1L/hr	1L/hr
Ambient Temp.	+5°C ~+35°C
Power Supply	AC 380V±10% 50Hz,3 phase 4 wires +Ground Wires
Weight	400KG	420KG	450KG
Sight window size	460*560mm
Sample holder	2 pcs
Fittings	cable port(portΦ50mm)1, chamber lamp1, power cable *2m
Safety device (standard)	No fuse breaker(NFB), overpressure, overheat & over-current protect, over temp. protect, overload protect for the blower, dry heat protect
Control System	Balanced Temperature & Humidity Control (BTHC)System
Refrigeration system	Air Cooled (Water Cooled is an option)
	Hermetic compressor
	Hermetic compressor Single stage refrigeration system, CFC-Free refrigerant(HFC-507/HFC-23)
	CFC-Free refrigerant(HFC-507/HFC-23)
Controller	7-inch LCD Touch Screen panel
	Operation model: Program or fixpoint running
	Memory capacity :120programs,1200steps,
	All repeat 999 cycles, part repeat 99 cycles
Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available
