Applications:

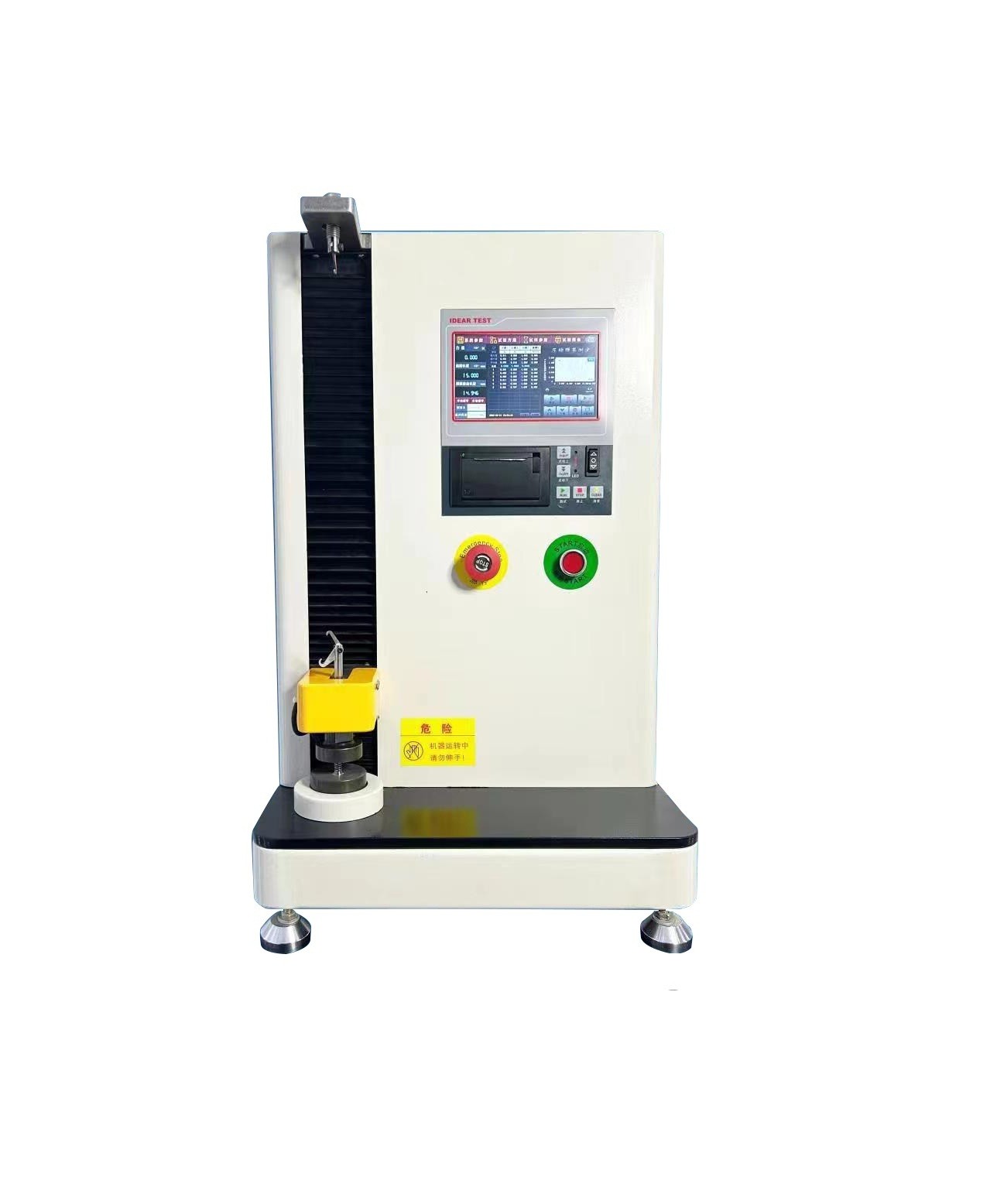

      BKTH-500N series spring testing machine is a special spring testing machine with high precision and durability. It is mainly used for tension and compression tests of various coil springs, measuring the elastic force under the specified deformation or measuring the deformation under the specified elastic force. Abundant test result display methods, data storage, curve display, and report printing are available.

Main functions and features:

1. It can automatically measure the tension, pressure and elastic coefficient of the spring, and can measure four points at the same time. The perfect acquisition and calculation method makes the accuracy of data acquisition and calculation stable and accurate.

2. It adopts touch screen operating system, DSP high-performance processor control technology, and the display part adopts 7-inch 65K color ultra-clear touch screen with 800*480 resolution. The ultra-high-performance configuration greatly improves software functions and user experience.

3. Load unit display can be switched freely: N, KN, g, Kg, gf, kgf, lb, Ibf, Oz, Ozf.

4. The display of deformation and displacement units can be switched freely: mm, cm, m, in.

5. The force scale value can be set freely up to three decimal places of 0.001N, and the displacement can reach 0.01mm.

6. With automatic and manual zero catch function. Efficient zero capture can be realized, and the height can be automatically remembered when the power is off.

7. The pressure test can realize the double test of height method and deformation method (pressure method: it can realize the corresponding force when the spring is compressed for a long time. Deformation method: it can realize how much it is compressed downward after touching the spring. Both functions can be used simultaneously Measure 4 points.) The unique control logic effectively improves the degree of system automatic change, and has a stable and simple user experience;

8. It can provide parameters such as constant height force value, constant deformation force value, spring coefficient, spring free length, and free height of depression

9. The accuracy of the measured value can be ensured by preloading and rigidity compensation correction.

10. Load sensor overload protection and emergency stop function.

11. With micro printer.
