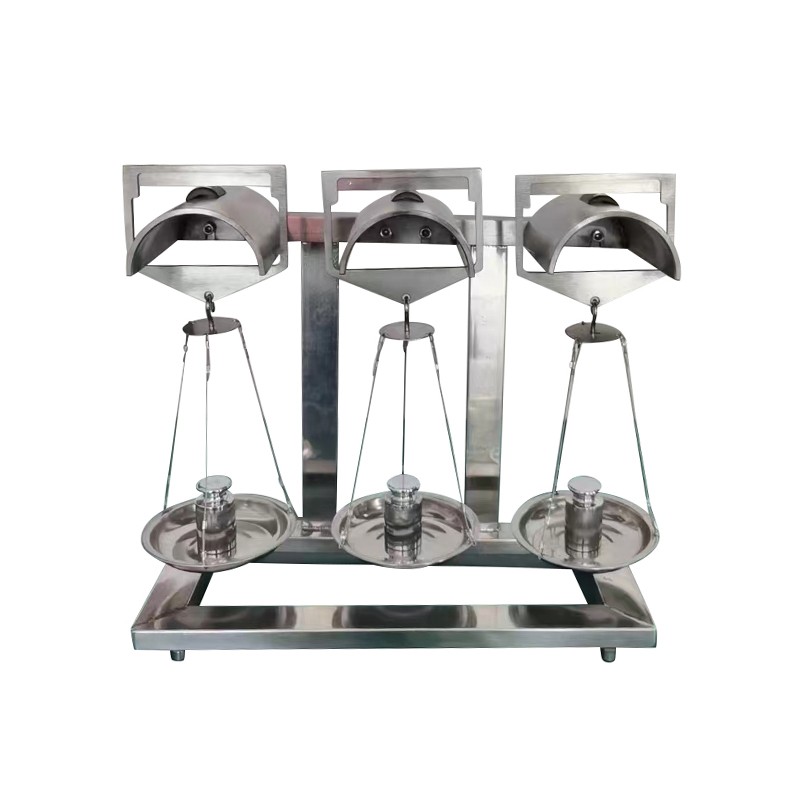

Cable High temperature pressure test device

According to GB/T 2951.6 - 1997 Sect 8.1 ~ 8.3 test standard design

Product description: It is suitable to measure elongation of the insulation cable and sheath under the heat and load to determine the thermal elongation of insulation of wire and cable.Used with aging test chamber,produce

Product Details

Product Tags

Cable High Temperature Pressure Test Device

Application

Suitable for wire, cable insulation and external indentations generated under high temperature and pressure.

Standards

According to GB/T 2951.6 - 1997 Sect 8.1 ~ 8.3 test standard design

Parameters
Blade thickness	0.70±0.01 mm
The weight of the weight should be	1g, 2g, 5g, 10g, 20g, 50g, 100g, 200g, 500g, 1000g (total 10/group)
V-clamp	900. 1200 / per group
Semicircular clamp	R5, R6, R7.25, R9, R10, R11, R12.5, R14, R15 per group
The load applied to the insert is determined by the formula	F = k2Dδ- δ2 m
