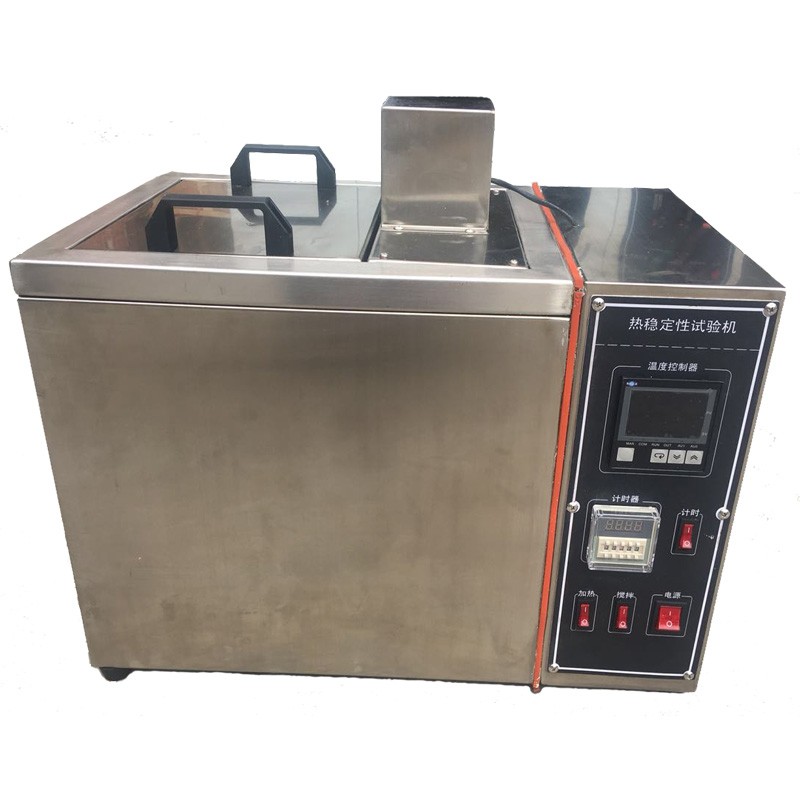

Thermal Stability Test Apparatus for Electric Wire and Cable Test

UL758, UL1581, UL62, ASTM, GB-1690, IEC811, VDE0281 test standard

Product description: Thermal Stability Test Apparatus for Electric Wire and Cable Test is used for materials like wire, cable, soft PVC, plastic insulating sheath, etc. It is tested at 200 Degrees Celsius ± 0.5 Degrees Ce

Product Details

Product Tags

Equipment Summary:

Made in accordance with GB / 8815 "Insulation and Sheath Thermal Stability Test" standard, in accordance with GB8815 "Soft PVC Polyethylene for Wires and Cables" test standard, UL758, UL1581, UL62, ASTM, GB-1690, IEC811, VDE0281 test standard.

Technical Parameter:

1. Temperature range: normal temperature ~ 250 ℃.

2. Temperature resolution: 0.1 ℃

3. Timer: 0 ~ 9999 seconds.

4. Working power: AC220V / 50Hz

5. Heater power: 1.25KW

6. Test oil: 2 # lubricating oil and insulating oil are used. (Provided)

7, outer box size: 420 (length) × 200 (width) × 250 mm (height)

8. Inner size: 3000ml

9. Glass tube: 150mm in length, 15mm in outer diameter, 13mm in inner diameter sealed at one end

10. PH value test paper: 1 ~ 7PH (Congo red test paper) Sanaisi wide test paper 1 ~ 14PH
