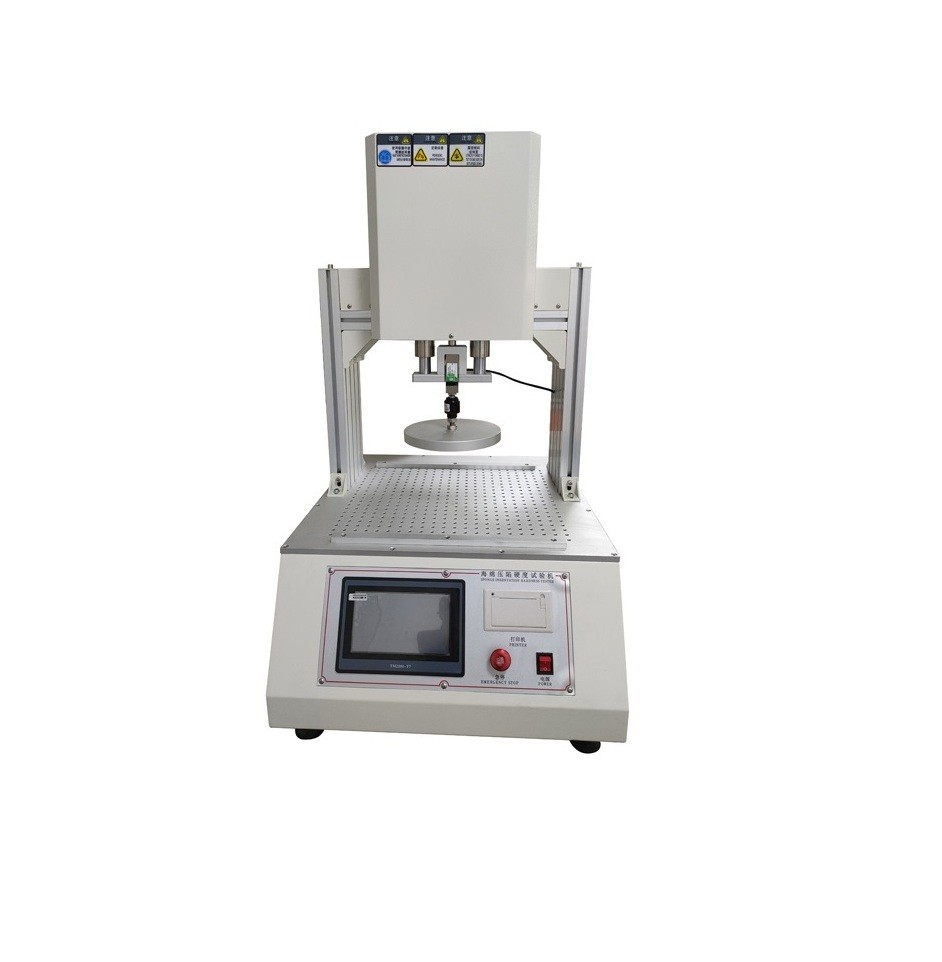

Foam Resilience Dynamic Fatigue Tester

Compliance with the standard ISO 3385

Product description: Foam compression fatigue testing machine is mainly used for cellular polymeric materials reciprocating compression test

Product Details

Product Tags

Product Application:

Sponge Compression Fatigue Tester is also known as sponge, foam indentation hardness testing machine, tensile metallic and non-metallic, polymer materials, compression, bending, detection of low cycle fatigue and other projects can be according to customer product requirements according to GB, ISO, ASTM, JIS, EN and other standards for the preparation, to automatically strike the biggest test, fracture strength, yield strength, tensile strength, compressive strength, flexural strength, elastic modulus, elongation , constant elongation stress, elongation and other parameters given stress.

Main feature:

1.Automatic counting, automatic indentation of 80,000 times to stop there Pause
2. High precision pressure sensors and large-scale integrated circuits, accurate determination.
3. Can always manually adjust indentation load, to keep it at 750 Newton

Sensing method	Force sensor automatic dispaly
Load Cell Capacity	300Kg
Motor	Servo motor control system
Unit switch	Kg,N,Lb
Accuracy	0.5 grade(±0.5%)
Testing stroke	200mm custom
Test speed	100±20mm/min
Size of upper compressing plate	Diameter 200mm
Bottom Border-radius	R1mm
Lower platform	420mmx420mm
Air hole diameter	6.0mm
Hole center gap	20mm
Specimen size	(380+10)mmx(380+10)mmx(50±3)mm
Power	AC220V
