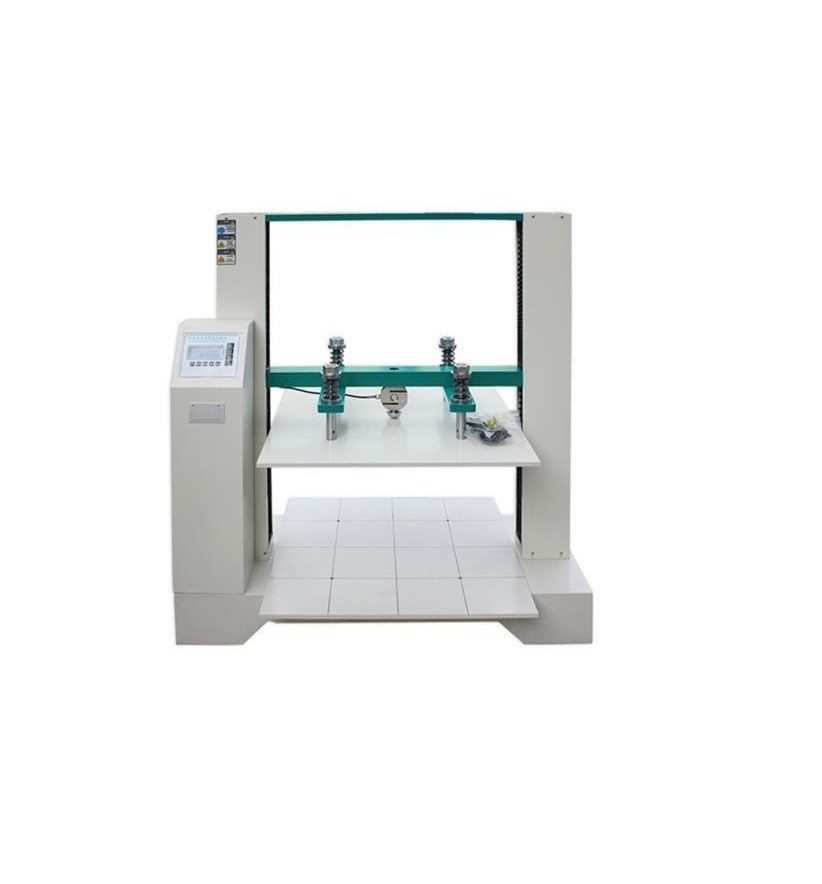

Box compression tester (BCT) - Compression strength tester

JIS-20212, GB4857.3.4, ASTM-D642

Product description: Box Compression Testers are PC-controlled systems primarily used in the packaging industry for determination of the compression strength of cartons, containers, cardboard boxes, etc.

Product Details

Product Tags

Application :

Electronic Carton Box Compression Test machine is used for all kinds of packing boxes and containers pressure resistance,compressive strength test. Test results can be used as the important bases for factories determining the hight of packing boxes or designing the packing box.

Features :

1. Electronic Carton Box Compression testing equipment can test cartons compression.

2. Electronic Carton Box Compression Test machine is the black paint processing, beautiful shape, with precision ball screw and double guide post.

3.Improve the operation of the stability and speed control accuracy and the precision power sensor wi-th my company the fine measurement and control system, which can real-time display current value and the maximum, and through RS232 serial ports and common to commercial computer connected for data transmission, the curve of the analysis and summary report , is a factory department reliable testing instruments.

Specification :

Model	BK-KT-A
Unit (switchable)	Kg, Lb, N
Capacity (optional)	2 T ,5T
Load Resolution	1/250,000
Stroke (exclude the grips)	400 mm
Load Accuracy	≤0.5%
Test Space (L×W×H)	130000×1500×1200mm
Speed of Compression	10 ± 3 mm/min
Operation Mode	PC
Report Items	Serial number, Peak value, Average value, Designated holding pressure value; all memorable
Structure	AC Frequency Conversion Motor ( Taiwan); Ordinary screw rod
Dimension (L×W×H)	2000×1200×2030mm
Power	1ø, 220v/ 50Hz
Weight	Approx.730kg
Safety Devices	Overload protection, overvoltage protection & limited position protection device
Standard	TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642
