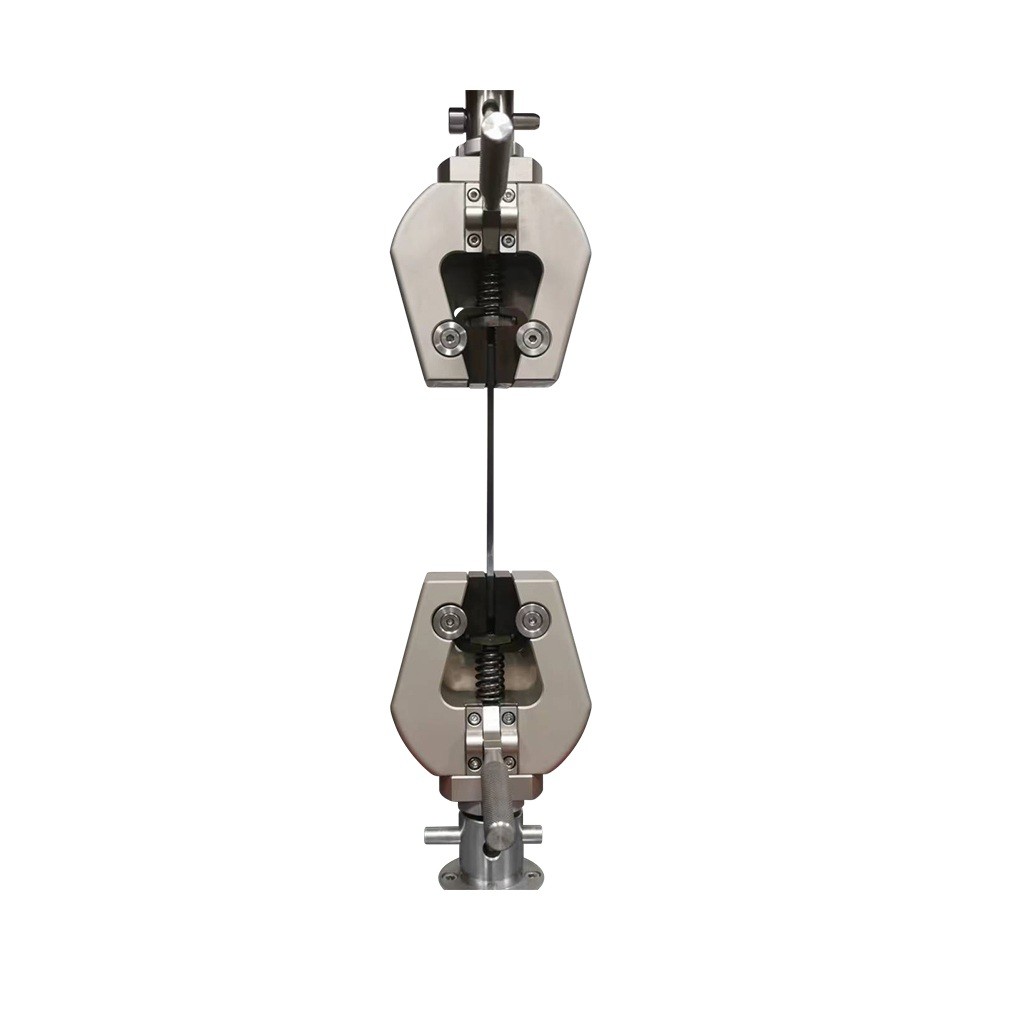

10KN 20KN Universal Material Testing Machine Grips Fixture

BK-3 10KN 20KN Universal Material Testing Machine Grips Fixture Clamp

10KN 20KN

Product description: 10KN 20KN Universal Material Testing Machine Grips Fixture Clamp

Optional A or B type connectors:

A joint with an outer diameter of 20MM and a length of 30MM (with locking)

Mother);

B joint inner hole 20MM deep 30MM;

Pin hole 10MM; Pin hole center to connector end

Face distance 14.5mm;

The locking method is single handle spring locking.

Single choice :

Jaw: flat 0-9MM

Clamping sample width=30MM
