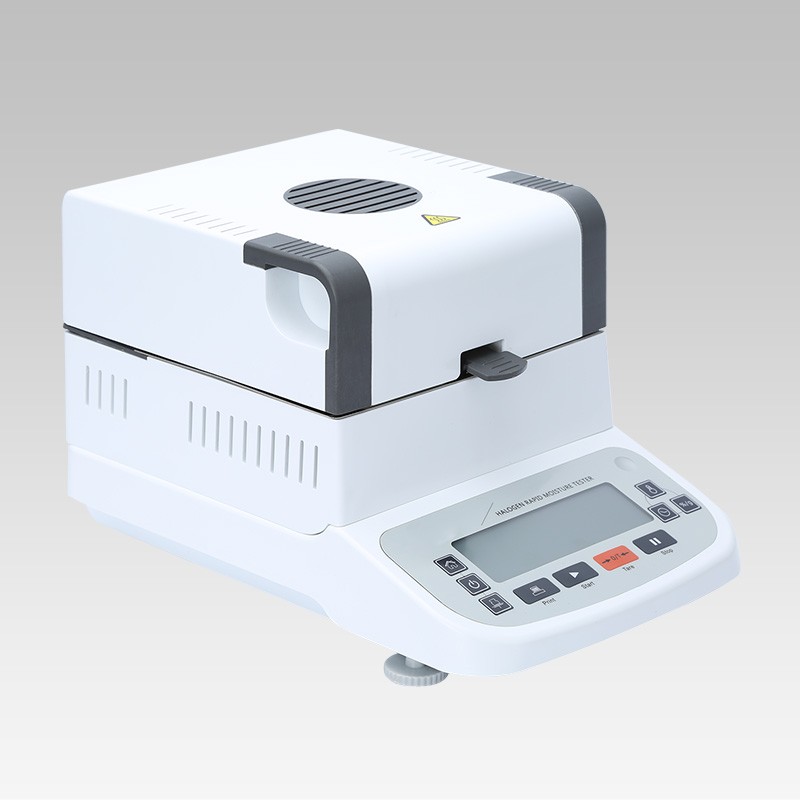

Lab Precision Balance Halogen Moisture Test Machine

High performance electromagnetic force sensor
  • Product description: Lab Precision Balance Halogen Moisture Test Machine
  • Product Details

    Product Tags

    Advantage:

    1 instead of the national standard oven method, the operation is simple, greatly shorten the test time, up to 10 times the efficiency of the work

    2 high precision (imported gold plated ceramic weighing sensor) high precision, long life, stable

    3 alloy metal base, so that the moisture meter is stable and reliable, reduce the interference of external factors

    4.LCD display, data show rich (curve, time, real-time temperature, moisture, solid content, program module)

    5 save multiple sets of data, do not repeat the test set, at any time, a variety of operating options, to meet the different requirements of sample measurement

    6. standard RS232 communication interface - easy to connect to the printer, PC and other peripheral equipment

    7.Direct heating from the inside of the substance, Mead science and technology R & D personnel design excellent and unique temperature control and heating system, the heating is uniform, cycling and balance formation. Annular quartz tungsten halogen ring infrared lamp heating mode, real-time monitoring of water loss is more accurate result.


    Main specification:

    Model Number

    BK-QL-610A

    BK-QL-720A

    BK-QL-100A

    Max.capacity (g)

    120

    120

    120

    Capacity Readability (g)

    120-0.005

    120-0.001

    120-0.0001

    Repeatability (Standard Error)

    >10g

    ±0.01%

    ±0.001%

    >2g

    ±0.05%

    ±0.005%

    Operational Temperature Range (℃)

    13~25

    Calibration Way

    Temperature calibration, External weights calibration

    Temperature calibration, Internal weights calibration

    Pan Diameter (mm)

    Φ90

    External Dimension (L*W*H mm)

    310*205*200

    Preheat Time (minute)

    20-30

    Baud Rate Options

    300,600,1200,2400,4800,9600

    Display

    LCD liquid crystal display

    LCD liquid crystal display



    Heating Temperature Range (℃)

    60-200

    Drying Process

    Standard heating, Step heating, Weight-lost heating

    Moisture Display Mode

    Relative Moisture

    Stop Way

    Automatic stop, Manual stop, Timing stop

    Setting Time

    0~99 minutes, interval 1 minute
