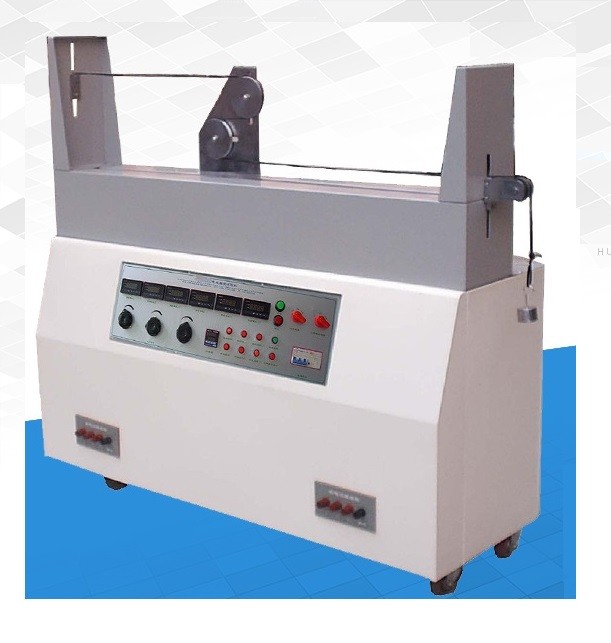

UL 1581 / IEC 60227-2 / IEC 60245-2 Flexible Cable Testing Equipment

1.1 Main purpose

This instrument is mainly used to test the mechanical strength of finished flexible cables. It is suitable for places: quality control, laboratories, etc.During the test, the flexible wire is wound on the trolley of the machine, the two ends are fixed with weights, and a certain current is passed according to the standard.During the test, the travel distance of the trolley is 1 m, and the speed is about 0.33 m/s and 0.1 m/s can be switched. When the wire has one of the failure judgment conditions in the performance parameter table during the test,or when the specified number of tests is reached, the car will automatically stop. This machine adopts stepless adjustment method (range: 2～40A) for the regulation of the energizing current of the wires, and can adjust the voltage between the wires from AC 0～380V.

1.2 Design standards

This instrument is designed according to GB5013.1-1997, GB5013.2-1997, GB5023.2, UL 1581, IEC 60227.2, IEC 60245-2, DIN VDE 0281, DIN VDE 0282 and other standards.

1.3 Technical parameters

No.	Item	Specifications
1	Input power	AC 380V±10%, 50HZ, three-phase four-wire system power supply
2	Leakage switch	3P, 32A, with protection
3	Output Power	3500W
4	Motor Power	AC 120W/220V
5	Trolley speed	0.33m/s (two rounds of torsion), 0.1m/s (three rounds of torsion)
6	Trolley itinerary	1 meter
7	Test voltage	Single phase, AC 0～220V continuously adjustable, 50HZ
8	Test current	Three-phase, AC 0～380V continuously adjustable, 50HZ
9	Testing frequency	2～40A adjustable
10	Pulley diameter	0～999999 times (can be preset)
11	Weight	Ordinary two-wheel bending: Ф60, Ф80, Ф120, Ф160, Ф200
12	Failure judgment	0.5KG, 1KG, 2KG, 3KG, 7KG, 14KG, 21N, 28N
13	Qualified judgment	1. The test line is disconnected; 2． Short circuit between test leads;
14	volume	3. The test lead is shorted to ground.
15	weight	When the line to be tested reaches the set number of tests, the machine stops working.
