Product description: Sand and Dust Test Chamber for IEC-529 Dustproof Test

Product Details

Product Tags

Product Description

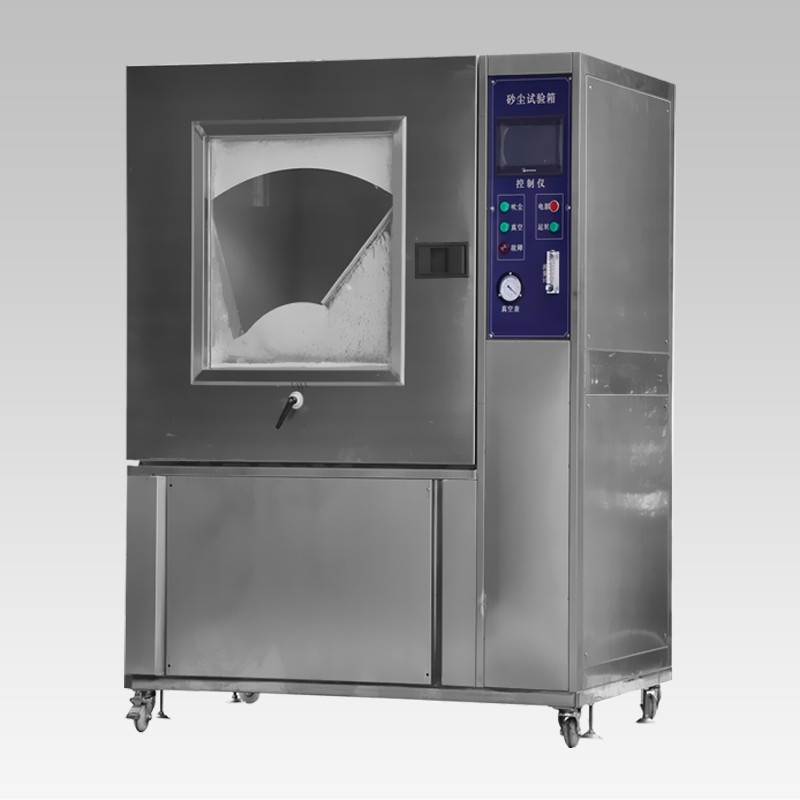

Sand and dust test chamber simulates the destructiveness of wind and sand in nature to the product, and is suitable for testing the sealing performance of the product's shell. It is mainly used for the two levels of IPX5 and IPX6 tests specified in the shell protection standard. The equipment has a dust-laden vertical circulation airflow, and the dust used in the test can be recycled. The entire air duct is made of imported high-grade stainless steel plates. The bottom of the air duct is connected to the conical hopper interface. Connect the diffusion port on the top of the working room to the working room body to form an "O" type closed vertical dust blowing circulation system, so that the air flow can flow smoothly and the dust can be dispersed evenly to the greatest extent. Use a single high-power low-noise centrifugal fan, and use a frequency converter to adjust the wind speed according to the test needs

Meeting standard:
1. IEC-529 dustproof test method
2. GB4208-93 dustproof test method
3. GB2423.37-89 dustproof test method
4. GJB150.12 dustproof test method

Outer size	1550w1300D2200HMM/customized
Inner size	1000W1000D1000H MM/customized
Inner chamber material	Stainless steel
Temp range	RT+10----80ºC
Temp fluctuation	≤±0.5ºC
Temp uniformity	≤1.5ºC
Mesh diameter	50um
Mesh wire width	75um
Dust concentration	2 -4 Kg/m3
Controller	Color touch screen
Window	Transparent with brush
Dust sample	dry talcum powder
Wire Width	75um
Test hole	φ50 mm
Input voltage	220V 2.5KW
