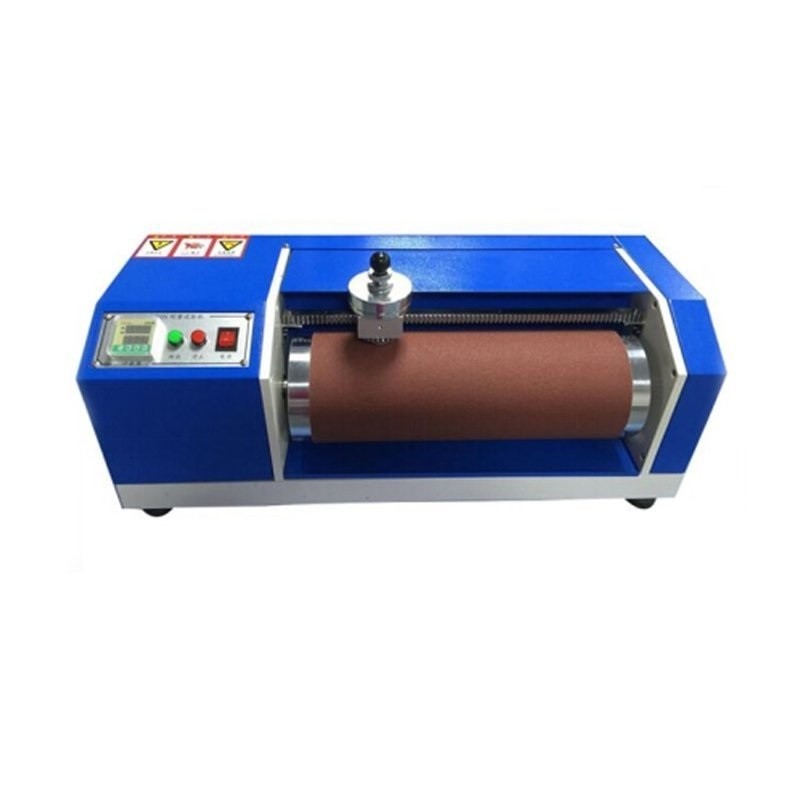

DIN Abrasion Tester ASTM D5963, EN ISO 20344, ISO 4649, DIN 53516

ASTM D5963, EN ISO 20344, ISO 4649, DIN 53516, SATRA METHOD 174

Product description: DIN Abrasion Tester ASTM D5963, EN ISO 20344, ISO 4649, DIN 53516

Product Details

Product Tags

Application:

It's to determine the abrasion resistance elastic material, rubber, tires, convey belt, transmit belt, sole, synthetic leather, leather and others.The abrasive resistance is assessed by measuring the abrasion loss after the specimen is rubbed against sandpaper.

Standards:

DIN ISO 4649:2006-11 (E). Rubber, vulcanized or thermoplastic - Determination of abrasion resistance using a rotating cylindrical drum device.
ASTM D5963 - 04(2010)e1 Standard Test Method for Rubber Property—Abrasion Resistance (Rotary Drum Abrader).

Technical Parameters:

Weight	2.5±0.1N; 5±0.1N; 10.0±0.2N
Specimen Size	Diameter 16mm, thickness 6~16mm
Diameter of wear wheel	150mm
Speed of wear wheel	40 ±1RPM
Emery cloth Specification	60 #, 425 ±473 ±1.5 (mm)
Testing Length	40M (about 84 rotate)
Horizontal displacement	4.2mm / rotate
Test-arm weight	250 ± 5 (g)
Shift screw	6 teeth / inch
Limit rotation	85 rotate
Set rotation	84 rotate (about 40M)
Return form	Electric automatic reset
Power	AC220V 50HZ
Machine Dimensions	600 ±330 ±420 (mm)
Machine Weight	AC220V, 50Hz (Specified by user)
