Packing straps tensile testing machine grips

Packing straps tensile testing machine grips 5KN

500KG 5KN

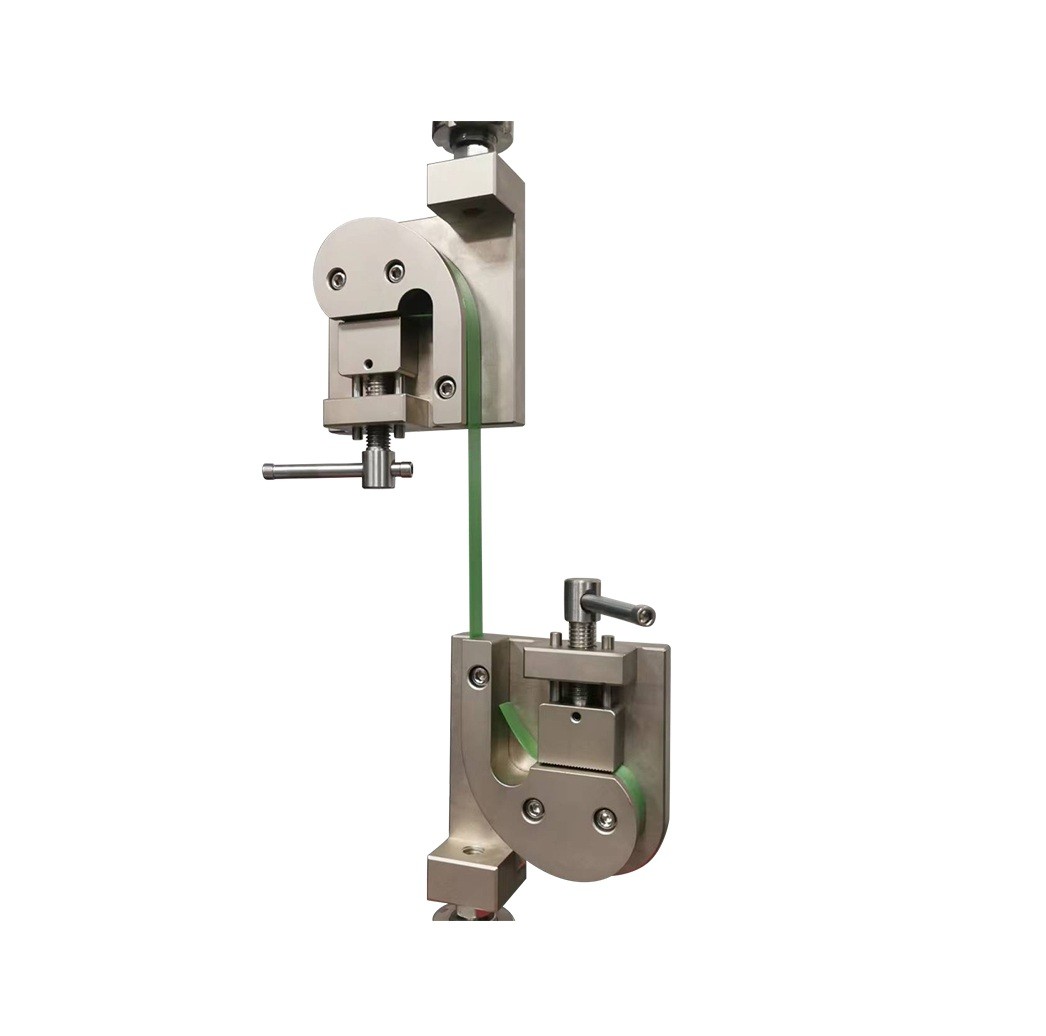

Product description: Packing straps tensile testing machine fixture grips 5KN

Optional A or B type connector:

A connector, shaft outer diameter 20MM, length 30MM (with lock

Tight mother)

B connector inner hole 20MM deep 30MM;

The pin hole diameter is 10MM, the center of the pin hole to the connector

The end face distance is 14.5MM.

It can hold specimens with a thickness of 4MM and a width of 20MM.

When not equipped with connectors, the clamp body has M12 internal teeth.
