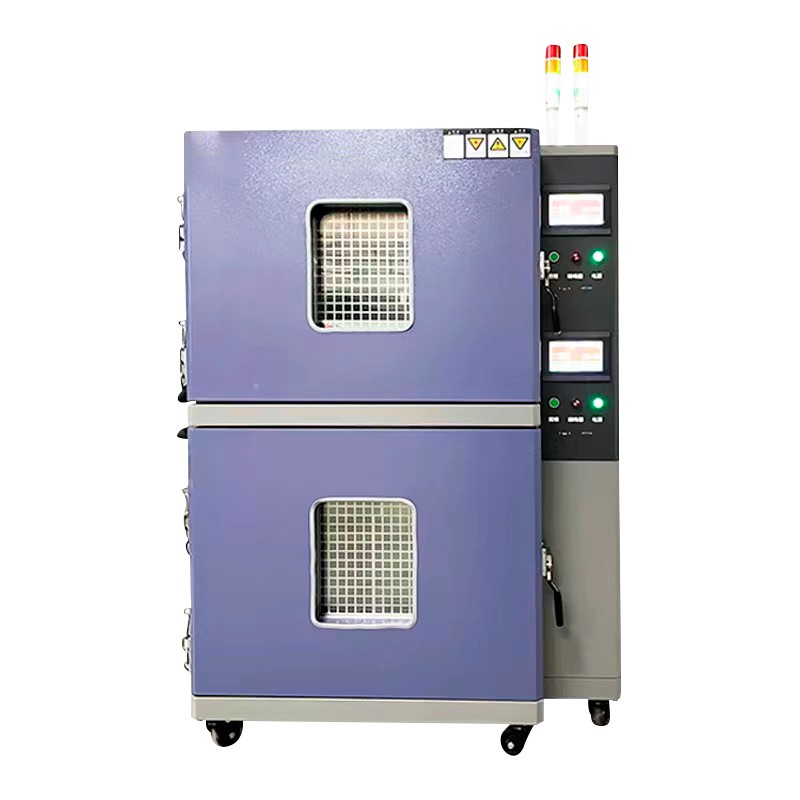

Double layer constant temperature and humidity test chamber

IEC 60068-2-1:2007，IEC 60068-2-2:2007

Product description: Double layer constant temperature and humidity test chamber is suitable for all kinds of electrical and electronic, automotive, metal, plastic, chemical, aerospace, medical, building materials and oth

Product Details

Product Tags

Application

Double-deck High Low Temperature Test Chamber provides a constant high and low temperature environment condition ranges from -40°C to 150°C (Available for customized design). It is widely used to test the thermal performance of various products and components. The two test cabinets work independently, providing high efficiency and performance for laboratory testing. Furthermore, the additional explosion-proof function enables this test chamber to be combined with the charge-discharge test, providing a temperature environment for various battery performance testing.

Features

PLC Control, programmable, remote computer control
Heating System
Refrigeration System
Forced Internal Circulate System
Fume Exhaust System
Explosion-proof System

Standards

IEC 60068-2-1:2007: Low temperature testing
IEC 60068-2-2:2007: High temperature testing
GJB 150.3-1986: High temperature testing
GJB 150.4-1986: Low temperature testing
GB/T 2423.1-2008: Low temperature testing
GB/T 2423.2-2008: High temperature testing
GB/T 31485-2015: Safety requirements and test methods for electric vehicles' power batteries

Performance parameters

Model	BK-D2-252	BK-D2-288	BK-D2-360
Single Cabinet Inner Dimension	W600 X D700 X H600 MM	W800 X D600 X H600 MM	W1000 X D600 X H600 MM
External Dimension	W1300 X D1800 X H1950 MM	W1500H1950D1700 MM	W1740H1900D2100 MM
Structure Mode	An integral structure with upper and lower cabinets.
Temperature Range	-40ºC - +150ºC
Temperature Fluctuation	±0.3ºC
Heating Rate	Average 1~3°C/minute (non-linear no-load)
Cooling Rate	Average 1.0°C/min Full rang (non-linear no-load)
Temperature Uniformity	≤±2ºC(at no load, constant state)
Observation Window	Three-layer vacuum tempered glass
Test Terminal	12 sets of terminals are connected to the test cabinet inside and outside of the chamber
Cooling Mode	Air cooling / Water cooling (Optional)
Compressor	Tecumseh (France)
Controlling Mode	Touch screen programmable control PLC, with USB interface, with RS485 .interface can be connected to computer control, special network control software, convenient remote monitoring, data acquisition
Internal Chamber Material	1.0MM thick SUS304# stainless steel with mirror finish, sprayed with Teflon insulation
External Chamber Material	1.2 MM thick Galvanized sheet, dusting pained with high temperature plasticized coating.
Power Supply	AC380V 50HZ 12KW/14KW/16KW
Safety Protection	Automatic explosion-proof pressure relief device, explosion-proof chain, tri-color light alarm device, remote control, smoke exhaust device, fire extinguishing device, etc.
Extension Function	Provide communication protocol, able to accompanied use with charge and discharge machine
