Optional A or B type connector:

A connector, shaft outer diameter 20MM, length 30MM (with lock Tight mother)

B connector inner hole 20MM deep 30MM;

The pin hole diameter is 10MM, the center of the pin hole to the connector

The end face distance is 14.5MM.

When not equipped with connectors, the clamp body has M12 internal teeth

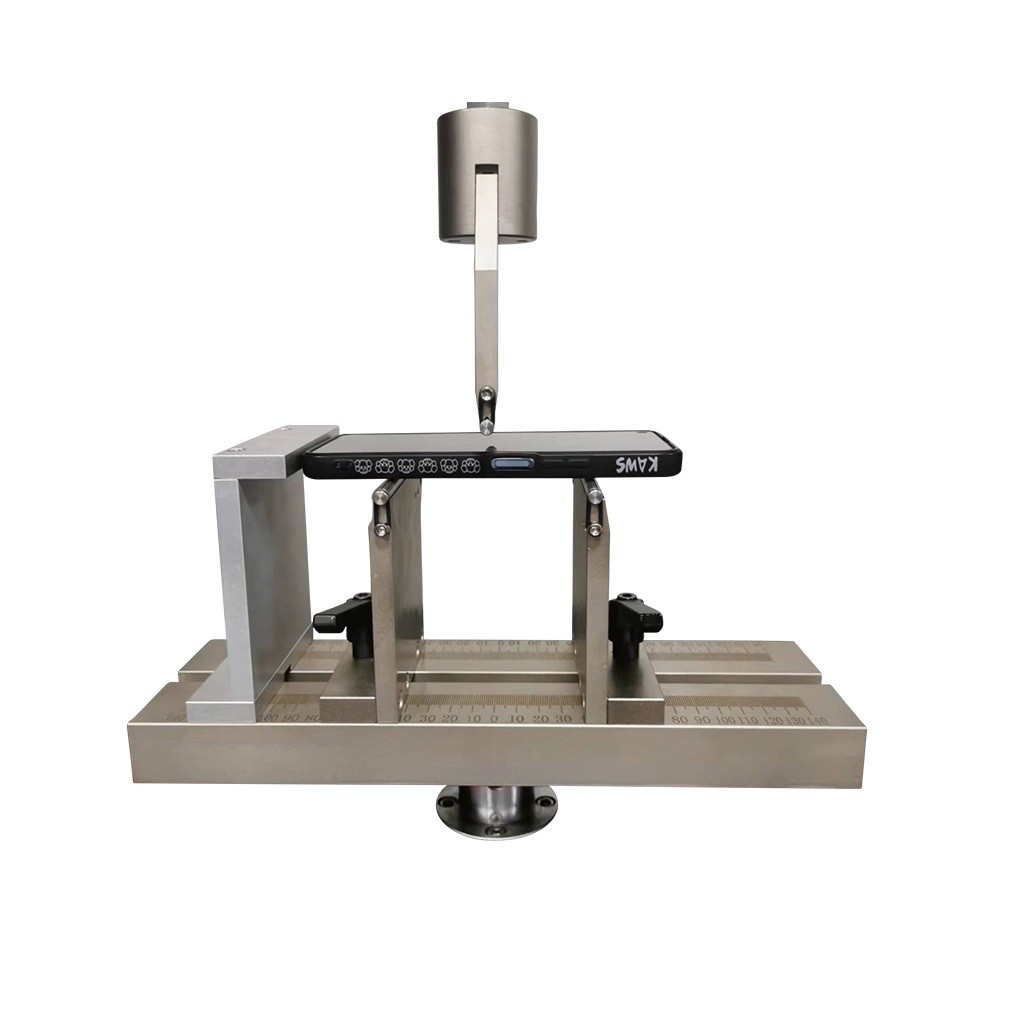

The clamp support/pressure point width and height are100MM, round rod R3 (customizable); test available

Adjustable span 250MM, with sample positioning on the front, rear, left and right

The total length of the piece and clip is 320MM.

.
