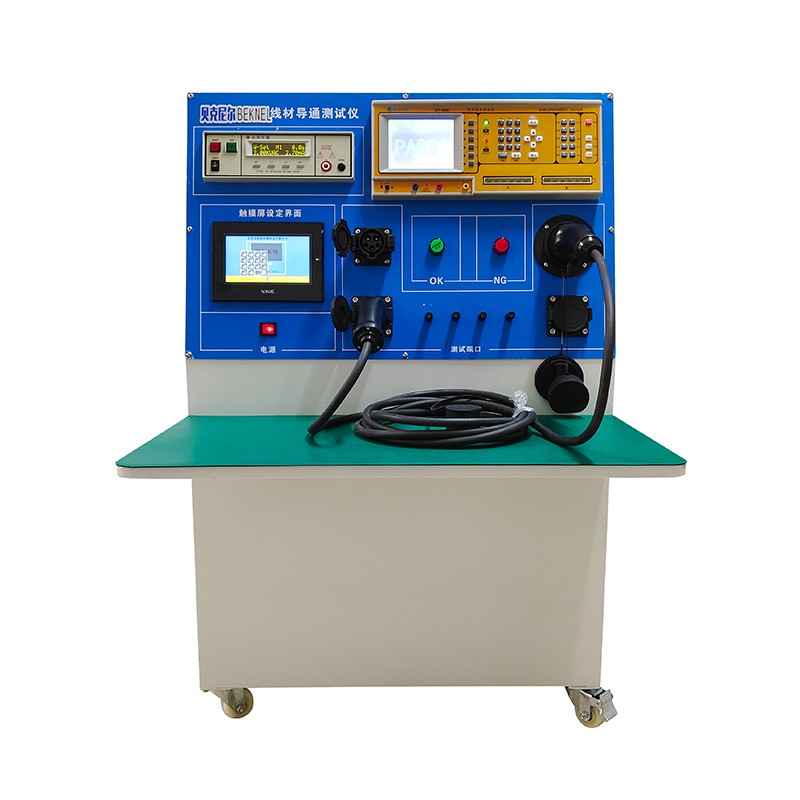

Electric vehicle charging gun multifunctional tester parameters：

Equipment host: The testing machine is mainly controlled by Panasonic microcomputer, with a 7-inch large touch screen operation interface,

and a conversion circuit composed of Schneider AC contactor and Hongfa relay to achieve one-time testing of all functions.

The touch screen function setting software has the following functions:

1： Test sequence prompt function: conduction, misalignment, resistance, component resistance, insulation resistance, AC withstand voltage test prompt

2： Selection function for national, European, and American standards.

3： Test time setting.

4： Touch screen display interface:

Test instructions for various test items.

ndication of various defective products and counting of various defective products.

Good product indication and good product count. Total count of defective products.

The test meets the following points:

Conduct electrical performance tests on charging gun wires in accordance with national, European, and American standards,

including short-circuit, misalignment, resistance, component resistance, AC withstand voltage, and insulation resistance.

(And can be set and operated on a microcomputer touch screen)

Test technical parameters:

Output AC voltage 0-5KV, digital display adjustable

Output AC leakage current 0.1-10mA adjustable

Insulation resistance setting 1M-100M adjustable

The set value of conduction resistance is adjustable from 1m Ω to 200 Ω

Component resistance test range: 1 Ω -100K Ω adjustable

All testing items have an adjustable time of 0.1S-99.99H

After the product testing is completed, there is a good product count for the good product, and a bad product count for the bad product, and there is a corresponding number

Defective product indication: When a defective product occurs, the machine will self lock and require a password to clear the alarm state before the instrument can resume testing.
