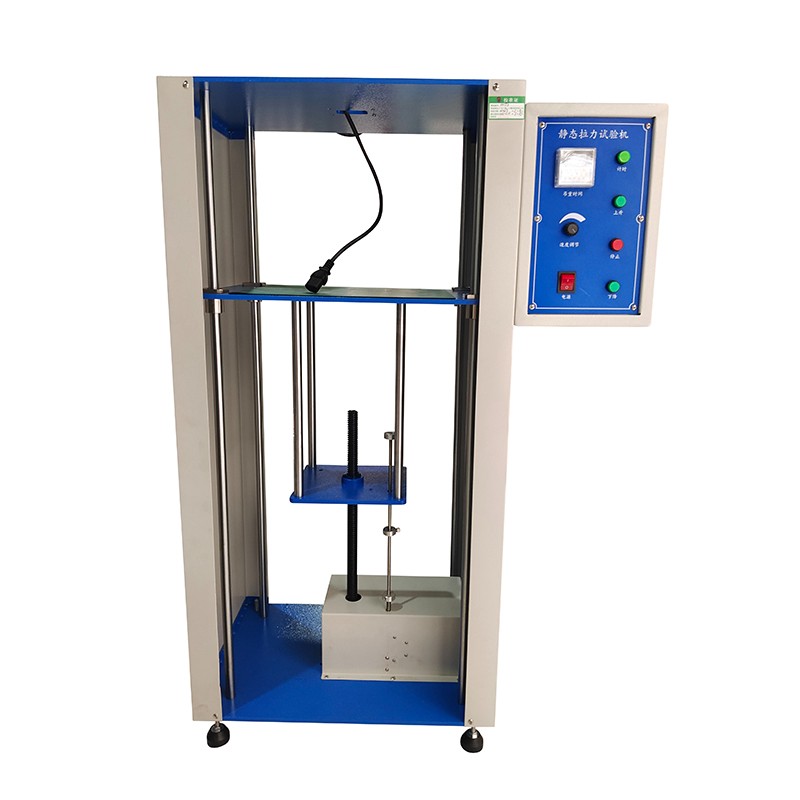

The test machine can test the load resistance between the plug piece and the power cord. The plug piece is hung on the top of the testing machine, and then the weight is hooked on the power line, then the tray is slowly lowered, the bottom of the weight is suspended, and the test piece is hung. pull
The direction should be perpendicular to the insertion of the insert.
Meet the standard: meet the requirements of GB2099, GB5013, GB5023, UL817, VDE0620 test standards.
Technical Parameters:
Pallet displacement speed Table speed 530±5mm/min or 530±5mm/min
Weight Load 10ib×6, 20ib×6 or 10ib×3, 20ib×3
Horsepower Motor 1/2HP or 1/2HP
Volume Dimension (W × D × H) 113 × 48 × 158cm or 80 × 48 × 158cm
Weight Weight 310kg or 100kg
Power 1∮AC 220V, 6.4A or 1∮AC 220V, 6.4A
