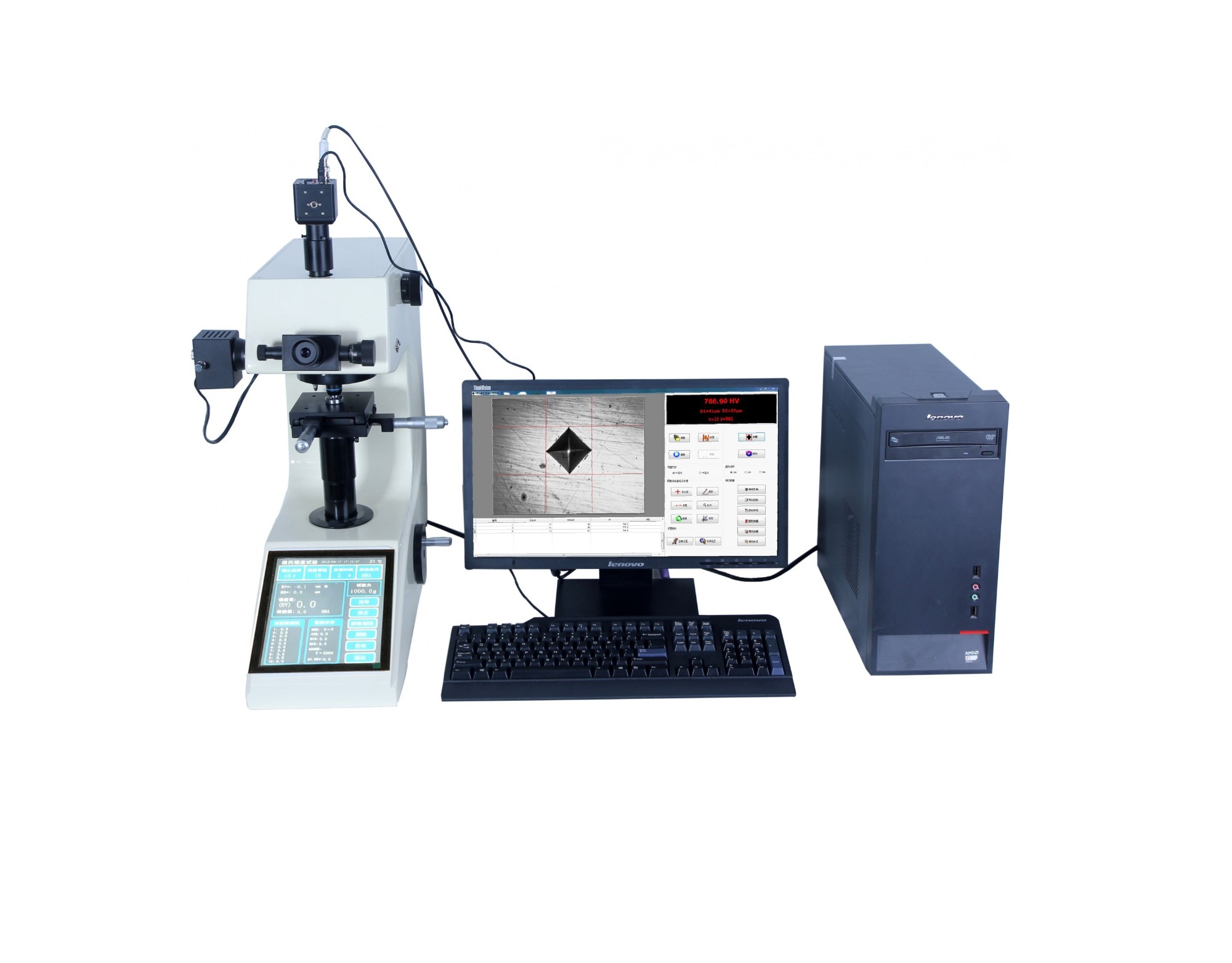

The MHVS-1000ZT touch screen micro Vickers hardness tester is a high-precision and high stability hardness tester, which improves the mechanical structure and stability. It adopts an 8-inch touch screen and a high-speed ARM processor, with fast calculation speed, rich content, powerful functions, intuitive display, friendly human-machine interface, and simple and reliable operation.

Product Introduction：

1. Adopting an 8-inch color touch screen, it displays rich information and is easy and intuitive for users to operate.

2. The body adopts a casting process to enhance stability, reduce the impact of frame deformation on hardness values, and improve test accuracy.

3. Equipped with temperature measurement function, digital temperature measurement circuit, long-term operation, stable and reliable.

4. Equipped with automatic correction function for cylindrical and spherical surfaces, with corresponding prompts.

5. The maximum and minimum hardness values can be set, and an alarm sound will sound when the test value exceeds the set range.

6. Equipped with software hardness value correction function, it can directly correct the hardness value within a certain range without the need to open the lid for adjustment.

7. With database function, experimental data can be automatically grouped and saved. Each group can save 10 sets of data, with a maximum of 200 sets of data.

8. It has a hardness value curve display function, which visually displays the changes in hardness values.

9. The database can automatically record parameters such as scale, test force, hardness value, temperature, etc.

10. You can freely set the number of test points for each group within the range of 1 to 10 points.

11. The system automatically calculates the maximum, minimum, and average hardness values for each group.

12. It can automatically convert to hardness values of other scales based on the current hardness value.

13. Equipped with a Bluetooth printer.

14. The measurement results can be sent to the computer through the RS232 interface.

15. Equipped with a USB interface, measurement results can be generated into Excel files and sent to a USB drive for storage.

Technical Parameter：

1. Measurement range: 5-5000HV

2. Turret mode: automatic turret

3. Measurement method: Digital display surveying and mapping

4. Test force: 0.09807, 0.2452, 0.4904, 0.9807, 1.961, 2.942, 4.904, 9.807N

(10, 25, 50, 100, 200, 300, 500, 1000gf)

5. Optical measurement system

Objective lens: 10 ×， forty ×； Total magnification: 100 ×， four hundred ×

Measurement range: 200 μ M; Graduation value: 0.025 μ M

6. XY coordinate test bench

Size: 100 × 100mm

Journey: 25 × 25mm

Graduation value: 0.01mm

7. Appearance dimensions and power supply

External dimensions: 530 * 290 * 490mm

Maximum allowable height of the sample: 120mm

Distance from the center of the pressure head to the machine wall: 110mm

Power supply: AC220V/50Hz;

Weight: 50Kg
