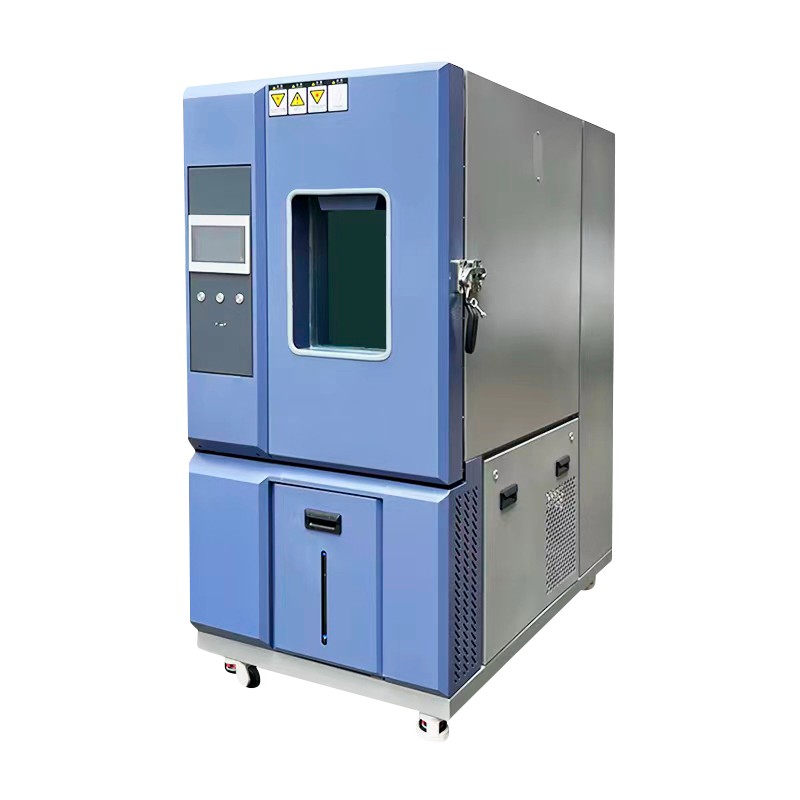

Rapid Linear Change Temperature Cycling Stability Test Chamber

-70ºC--  -150ºC(KS); -40ºC--   -150ºC(KL); +20ºC--  -150ºC(KR)

Product description: Rapid Linear Change Temperature Cycling Stability Test Chamber simulates the changed environment of test temperature with rapid change rate based on linear or non linear, which is used to detect the r

Product Details

Product Tags

Product Description

Rates Rapid Linear Change Temperature Cycling Stability Test Chamber simulates the changed environment of test temperature with rapid change rate based on linear or non linear, which is used to detect the resistance ability of electronic, automobile, rubber, plastics, aerospace science and technology, military technology and advanced communication equipment and other products in the heat and cold conditon, so as to judge the reliability and stability for the products, improve the products quality and provide the basis for the reliability.

Features:
1 New design, easy operation.
2 Imported LCD touch controller.
3 Uniform air supply cycle system.
4 Long axis motor is vertically installed on the top.
5 Bright and spacious observation window.
6 Advanced security protection device
7 Rapid heating-up and heating-down temperature
8 Best after sales service: One year free parts maintenance.
9 Meet international test standards.
10 Customization is available & welcomed.

Technical parameters:

Specification
Model		BK-CT-225	BK-CT-306	BK-CT-408	BK-CT-800	BK-CT-1000
Internal Dim.W×H×D(mm)		500×750×600	600×850×600	600×850×800	1000×1000×800	1000×1000×1000
External Dim.W×H×D(mm)		1500×1930×1550	1600×2030×1550	1600×2030×1750	2100×2280×1950	2100×2280×1950
Temperature Range		-70ºC-- -150ºC(KS); -40ºC-- -150ºC(KL); +20ºC-- -150ºC(KR)
Rapid Changes Temp.Range		-70ºC;-50ºC-- +85ºC(KS),-40ºC; -20ºC-- +85ºC(KL),-20ºC; 0ºC-- +85ºC(KR)
Heating & cooling rate		3ºC/min,5ºC/min,8ºC/min,10ºC/min,15ºC/min
Ferformance	Temp.Constancy	±2.0ºC
	Temp.Constancy	±1.5ºC
	Indication Resolution	0.01ºC
	Heat-up Time	-70ºC-- -150ºC in 60min; -40ºC-- -150ºC in 50min; +20ºC-- -150ºC in 35min
	Pull-down Time	+20ºC-- -70ºC in 70min; +20ºC-- -40ºC in 55min; +20ºC-- -20ºC in 35min
Material	Exterior	Stainless steel piate+powder Coated
	Interior	SUS#304 stainless steel piate
	Insulation	PU & Fiberglass wool
Systems	Cirulation	Siroco fan
	Heating	Heater;stainless-gang Fin-type heat pipe heat pipe heating mode of air circulation
	Cooling	Airtight compressor+vaporator fins+air-cooling condenser
Other Components		Vacuum glass inspection window, cable port(ø 60mm),control status indicator lights,chamber lamp, experiment separation shelves(freely adjustable 2pcs)
Sevey Devices		No fuse overload protection, the compressor overheating,over-current, over-pressure,dry heat, inside the over-temperature warning system
Power Source[K.W.]		AC 3Ψ 380V 60/50Hz

Except Rates Rapid Linear Change Temperature Cycling Stability Test Chamber, we also can supply:

1) Temperature/ humidity test series: Temperature humidity test chamber, Walk in environmental room, Thermal shock test chamber, High altitude low pressure simulation test chamber
2) Aging test series: Hot air oven, Vacuum drying oven, Air ventilation aging test chamber, Steam aging test chamber, Ozone resistance test chamber, Burn in test equipment
3) Weather simulation tes series: Rain spray test chamber, dust test chamber, Xenon lamp aging test chamber, UV test chamer
4) Mechanical test series: High frequency vibration test machine, drop test machine , Glue dispensing machine etc.
