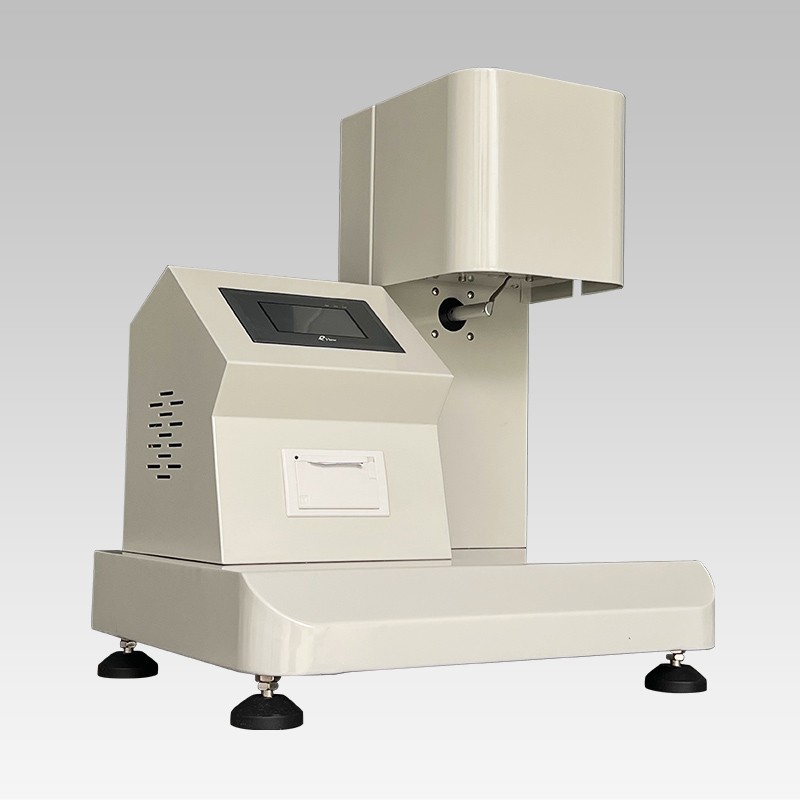

ASTM D1238 MVR and MFR Melt flow index tester machine

Meet the requirements of ISO1133-97, ASTM1238, JIS and other standards.

Product description: ASTM D1238 MVR and MFR Melt flow index tester machine is suitable for determination of flow properties of thermoplastic high polymer under high temperature.It is used to determine the melt flow rate o

Product Details

Product Tags

Product Description

The melt index test machine meets the standard requirements of GB/T3682-2000. The main parameters of the melt index meter also meet the requirements of ISO1133-97, ASTM1238, JIS and other standards. It can be used for polyethylene, polypropylene, polystyrene, ABS, poly Measure the melt mass flow rate (MFR) or melt volume flow rate (MVR) of various plastic materials such as amide, fiber resin, acrylic ester, polyoxymethylene, fluoroplastics, polycarbonate, etc., widely used in plastic production , Plastic products, petrochemical industries and related colleges, research institutes and commodity inspection departments.

Extrusion part
Outlet diameter	2.095 ± 0.005 mm
Outlet length	8.000±0.025mm
Charging barrel diameter	9.550±0.025mm
Charging barrel length	152 soil 0.1 mm
Piston rod head diameter	9.475 ± 0.015 mm
Piston rod head length	6.350±0.100mm

Standard test load (level 8)
Level 1	0.325kg
level 2	1.200 kg=(0.325+2 No. 0.875 weight)
Level 3	2.160 kg=(0.325+No.3 1.835 weight)
level 4	3.800 kg=(0.325+No.4 3.475 weight)
Level 5	5.000 kg=(0.325+No.5 4.675 weight)
Level 6	10.000 kg
Level 7	12.500 kg
