Product information:

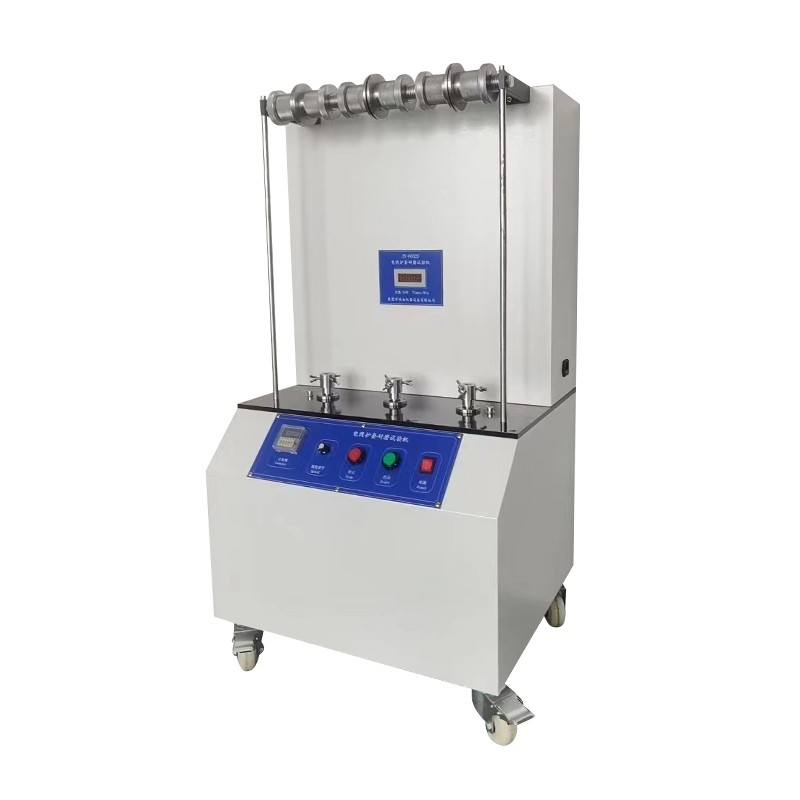

This device conforms to the standard requirement of IEC245-4. It is used for the abrasion test of the rubber insulated cables ( the power cables of the residential luminaire, household appliances such as electric cooker, electric kettle, electric iron.)

Technical parameters:

1, Working power supply:AC220V 50Hz
2, Fixed shaft diameter:Φ40±0.3mm
3, Test rate:single trip 40±1 times/min
4, Testing distance:0.1mm up-and-down motion；
5, Working station: 3
6, Weight:500±5g*3
7, Counter:0~999999 (preset)

8, Dimension:1200×400×1400 (mm)
